 Micro Pressure / Vacuum Pump >> High Performance Liquid Pump >> TF28 High performance micro liquid pump


Number:
TF28
Name:
TF28 High performance micro liquid pump
Spec:
6/12/24v,flow 0.15L/Min,water head 10M
Memo:
For more detail, please feel free to contact us.
Class:
Micro Pressure / Vacuum Pump

    Product Readme

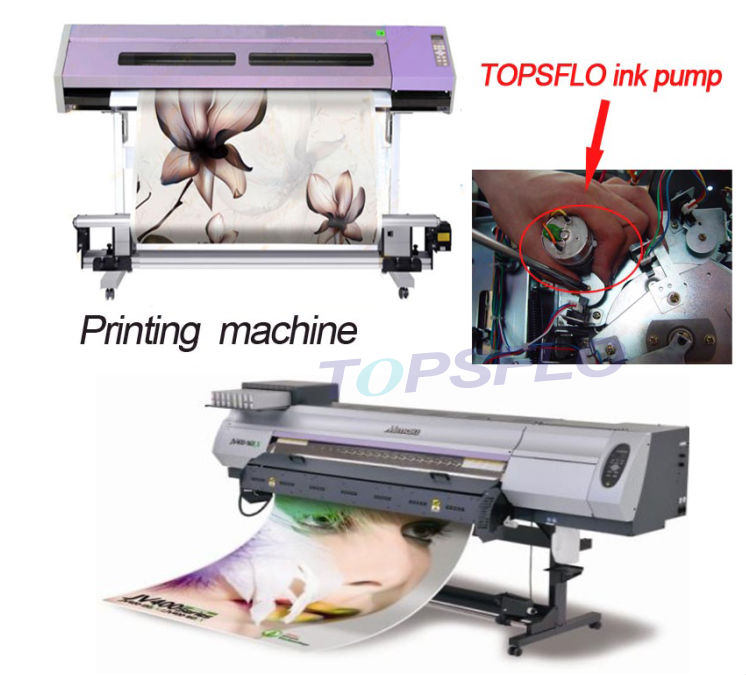

diaphragm liquid ink pump,printer pump,printer ink pump

Model Liquid Pump Vacuum Pump Rated Voltage No-load Current Max Head Max Vacuum Max Flow
  (Item Number) (Item Number) (Vdc) (A) ( M ) (KPa) (L/min)
TF28-B TF28-B12-W1001 TF28-B12-V3505 6 /12 / 24 0.078 10M -35 water : 0.15               gas :  0.5
 " W " means water/liquid pump,  " / V " means vacuum pump, "6/12/24" means different voltages optional.
Pump Weight:70g;  Pump Size:53.5mm*28mm*40mm;  Inlet&Outlet:OD 4mm/ID 2mm,hose suggestion:ID 3mm
Super silent noise50dB from 1 Meter;  Materials:pump head Nylon, membrane EPDM, valve EPDM.
Motor type and code:“B”means economical brush DC motor (lifetime1,000hours)

diaphragm liquid ink pump,printer pump,printer ink pump

  diaphragm liquid ink pump,printer pump,printer ink pump

diaphragm liquid ink pump,printer pump,printer ink pump



diaphragm liquid ink pump,printer pump,printer ink pump

 diaphragm liquid ink pump,printer pump,printer ink pump





diaphragm liquid ink pump,printer pump,printer ink pump

Hits:5686  UpdateTime:2013-10-10 【Print】 【Close
