Features:
• 316L stainless steel shell, PEEK gear, PTFE sealing material, corrosion resistance, high temperature resistance, durable
• Driven by magnetic coupling, no leakage
• Compact structure, high pressure
• Pulsation free flow & Low noise
• Strong self-priming ability
• FDA standards to ensure food safety
• Stepless-adjustment flow
• Suitable for -0.1 Mpa~2Mpa closed systems,resistant to impact loads

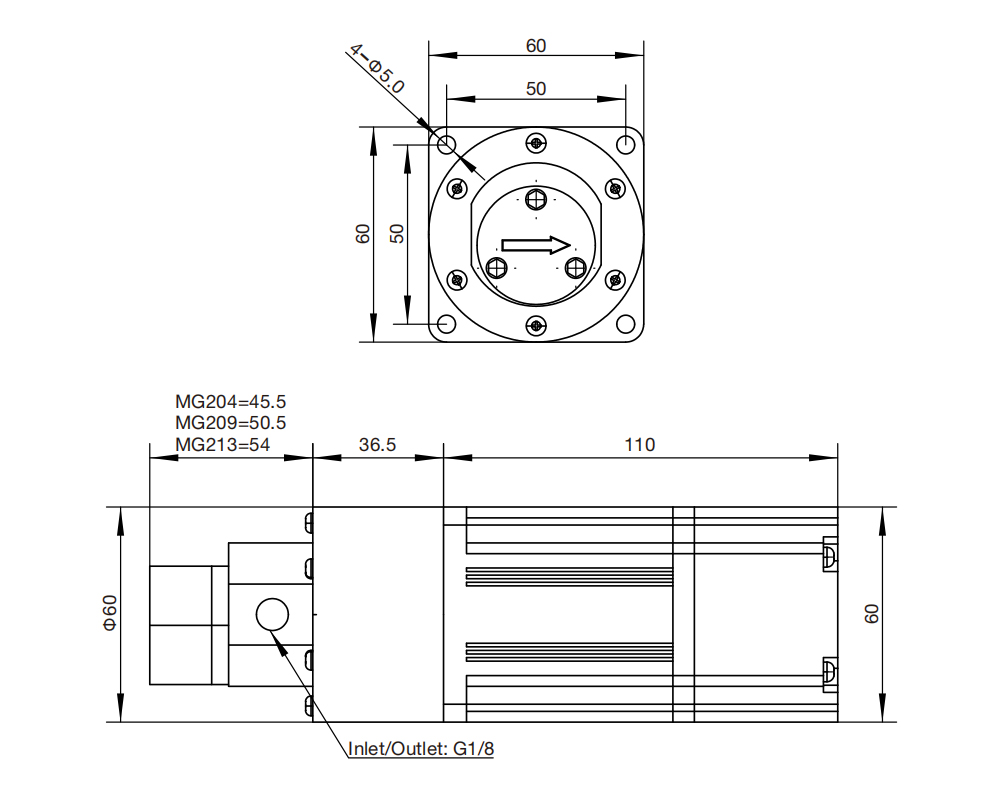

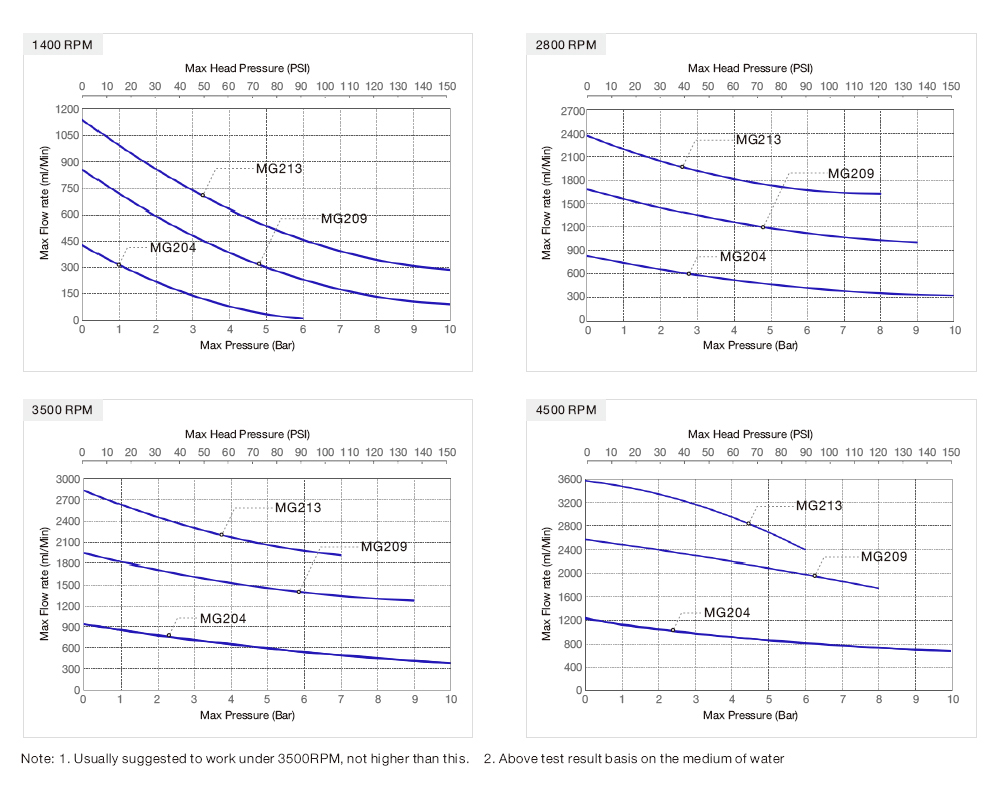

| Model | Max Head Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | Motor |
| MG204XK/DC24WI | 10 | 20-1000 | 70 | DC24 | G1/8” | DC Brushless Motor |
| MG209XK/DC24WI | 7 | 100-2500 | 70 | DC24 | G1/8” | DC Brushless Motor |
| MG213XK/DC24WI | 7 | 300-3500 | 70 | DC24 | G1/8” | DC Brushless Motor |
| Note:
1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm . |
||||||
• Altitude: ≤ 2500 M
• Humidity environment: ≤ 75%
• Fluid viscosity: 0 ~ 3000 CPS
• Ambient temperature: -10 ~ 50 ℃
• Fluid temperature: -10 ℃ ≤ T ≤ 85 ℃ (except for the freezing)
• Working way: continuous working
• Apply the media of: acid and alkali, salt, organic solvents, oils
• Lifetime above 8000hours
MG Magnetic Drive Gear Pump Applications:
• New Energy Industry: EV charging cable cooling,Fuel cell
• Food Equipment: Automatic filling machine, coffee machine, food processing, milk vending machine
• Medical Equipment: hemodialysis machine, surgical instrument, skin care, disinfection and sterilization equipment, beauty equipment
• Printing Equipment: ceramic inkjet printers, inkjet printer, photo machines, barcode machines
• Commercial Equipment: laser cooling units, spray equipment, water treatment, welding & cutting, lab instrumentation, spraying
• Other: Fluid transfer, cooling circulation

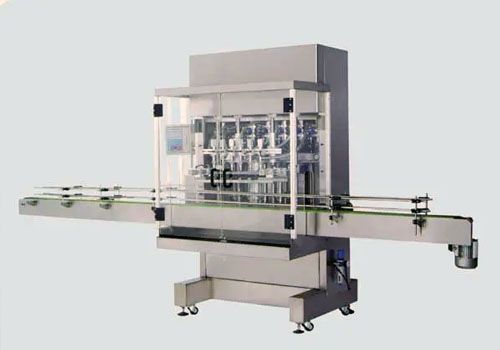

Automatic Filling Machine
Ink Printer
Medical Beauty

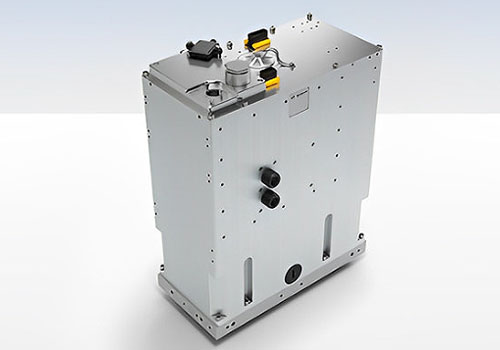

Fuel cell
Function:
Pressure limiting valve, Check valve, Inlet and outlet diameter, Wide voltage, High temperature
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
Max Flow：6L/Min
Max Pressure：8Bar
Max Flow：6.5L/Min
Max Pressure：10Bar
