TA50-B Car Circulation Water Pump
Mainly used in
Car Engine Cooling Circulation | Car Engine Pre-heating
Heating System (Car Auxiliary Heaters & Parking Heaters)
Electric Vehicles Circulation System | Motorcycles Cooling
EV Charging |Liquid Transfer | General Purpose Pumping
Description
Features:
• -45°C extreme low temperature cold start, extreme
• High temperature and stable operation
• Vibration resistant
• Protection functions: Automatic polarity protection, Blocked protection
1. With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.
2. TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.
3. Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.
4. With polarity protection function, then the pump will not burned by wrong wiring.tailored to the specific vehicle system.
Specifications
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TA50-R12-2302 | 20 | 2.5 | 12 | 1.25 | 15 |
| TA50-R24-2303 | 26.5 | 3 | 24 | 0.83 | 19.9 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Foog Grade(Y/N) | N |
| Ambient Temperature | -45～70℃ |
| Liquid Temperature | -45~100℃ |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V 24V: 12~28V |
| Maximum System Pressure | 1.8MPa |
| Noise | ≤42dB(A) 1m |
| Ideal Life Time | >20000 Hours |
| IP Level | IP67 |
| OD(inlet / outlet) | 22mm / 22mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: PPS O-Ring: EPDM Shaft: Stainless Steel Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Blocked-Protection; Polarity Protection; Over Temperature Protection |
| Remarks | Can't dry-running, not self-priming |

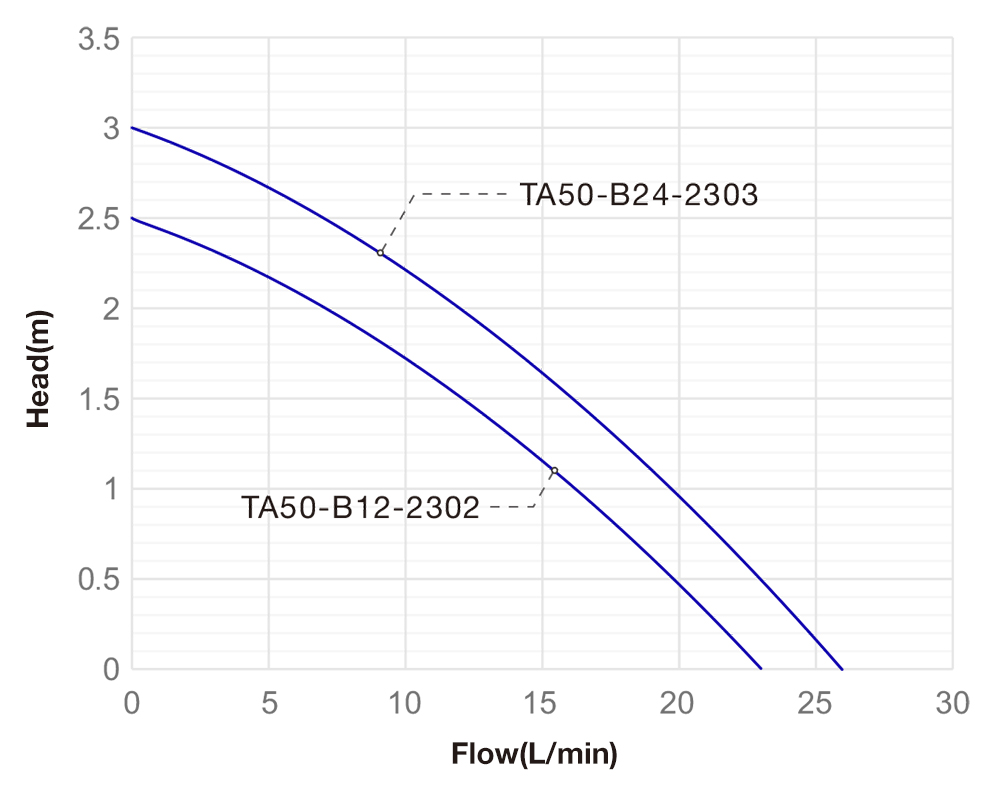

Performance Curve

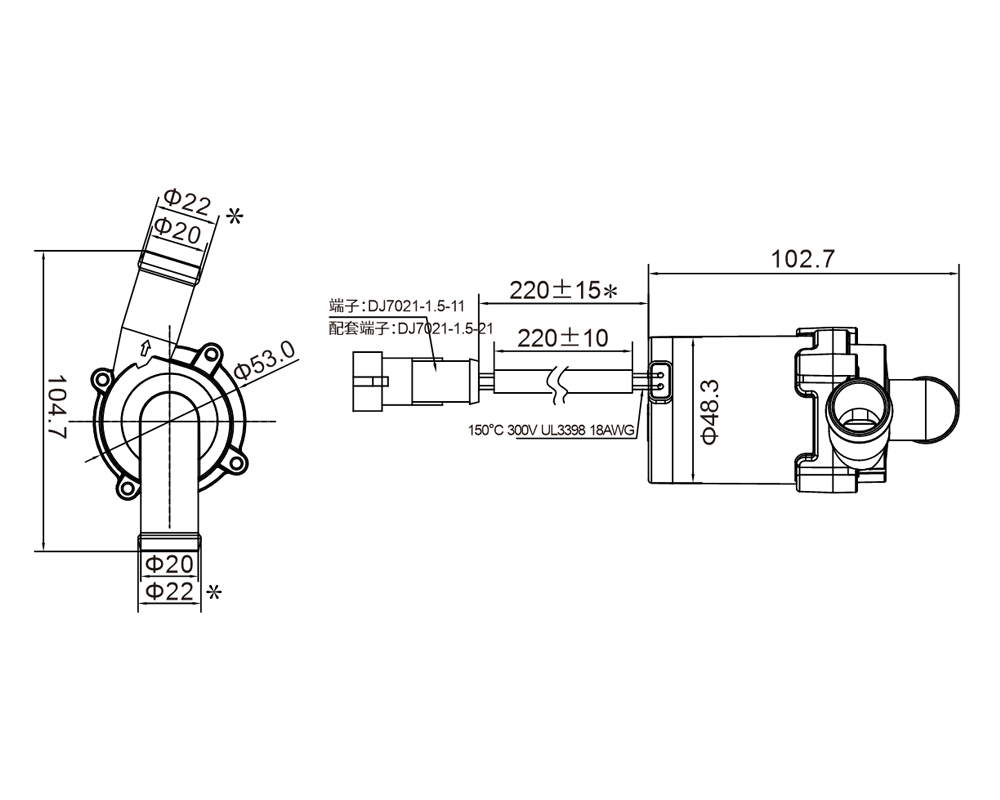

Dimension(mm)
Application
TA50 Car Circulation Pump Applications: Car Engine Cooling Circulation, Car Engine Pre-heating, Heating System(Car Auxiliary Heaters & Parking Heaters), Electric Vehicles Circulation System, Motorcycles Cooling
-

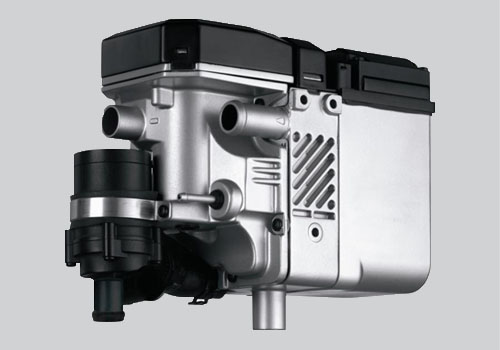

Car Parking Heaters
-
Motorcycles Cooling
-
EV Thermal Management System
Customization
Function:
FG (RPM) signal wire
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
