Features:
• -45°C extreme low temperature cold start
• High temperature and stable operation
• Vibration resistant
• Long lifetime > 20000 hours

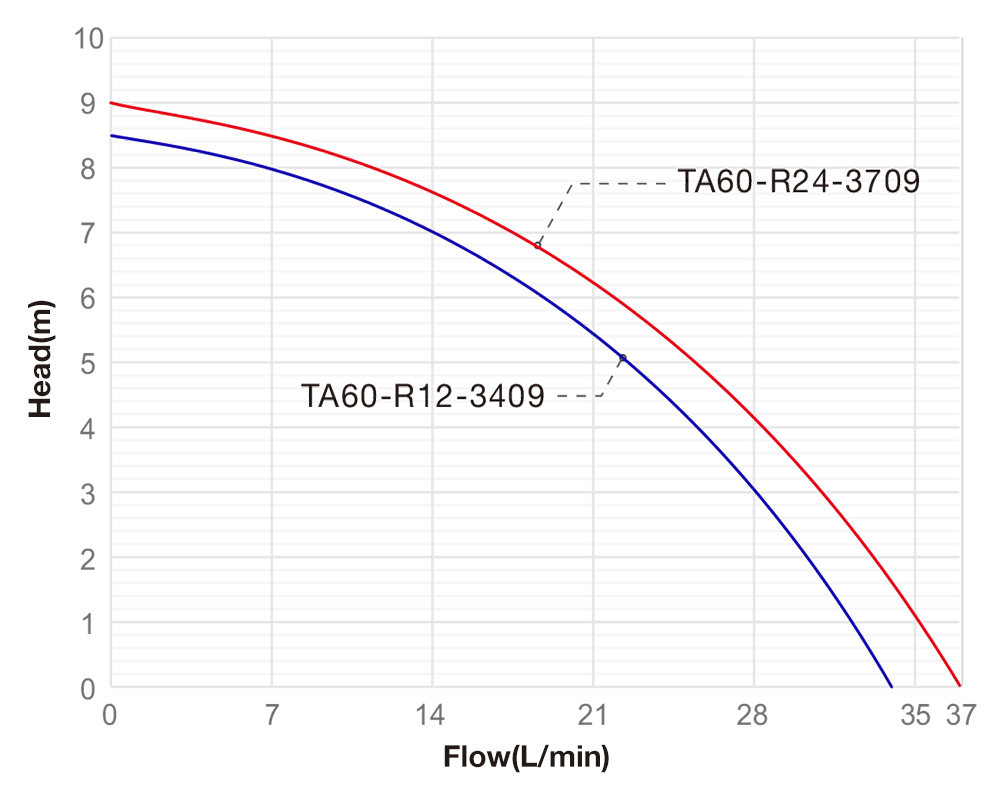

| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TA60-R12-3409 | 34 | 8.5 | 12 | 4.6 | 54 |
| TA60-R24-3709 | 37 | 9 | 24 | 2.6 | 60 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC motor |
| Ambient Temperature | -45~80°C |
| Liquid Temperature | -45~105℃ |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V 24V: 12~28V |
| Maximum System Pressure | 1.8MPa |
| Noise | ≤50dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP68 |

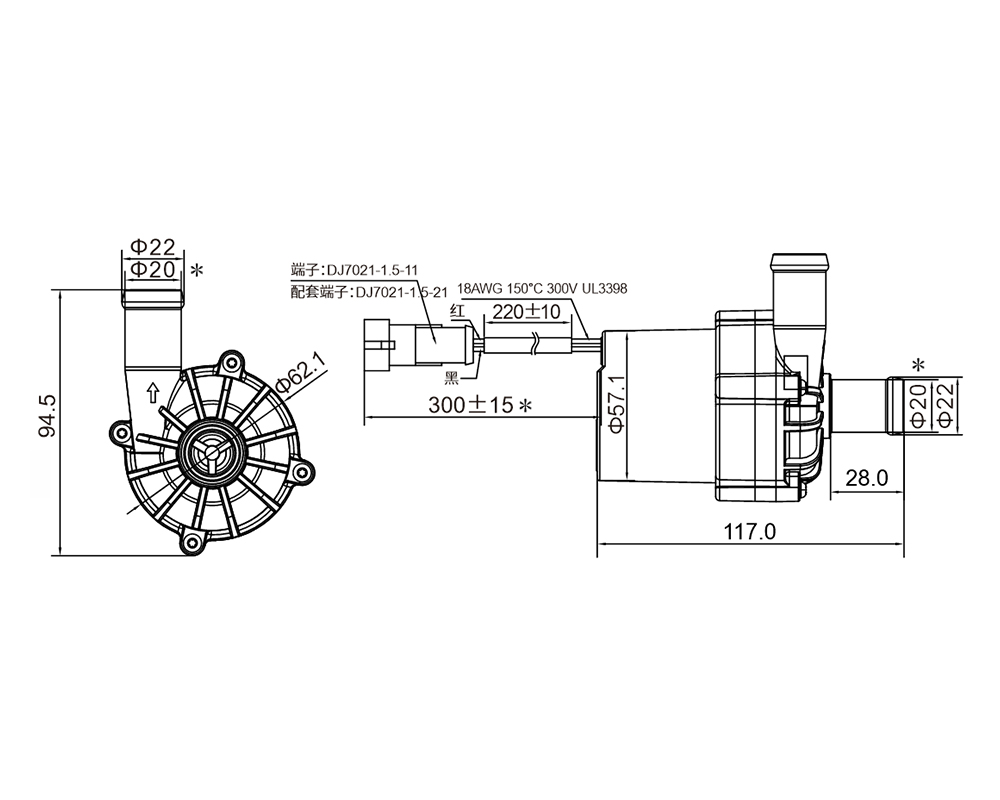

| OD(inlet / outlet) | 22mm / 22mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: PPS O-Ring: EPDM Shaft: Stainless Steel Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Over-Voltage Protection; Over-Current Protection; Blocked-Protection; Polarity Protection; Constant power output; Dry-running Protection; Lower-Voltage Protection(Customized) |
| Remarks | Can't dry-running, not self-priming |

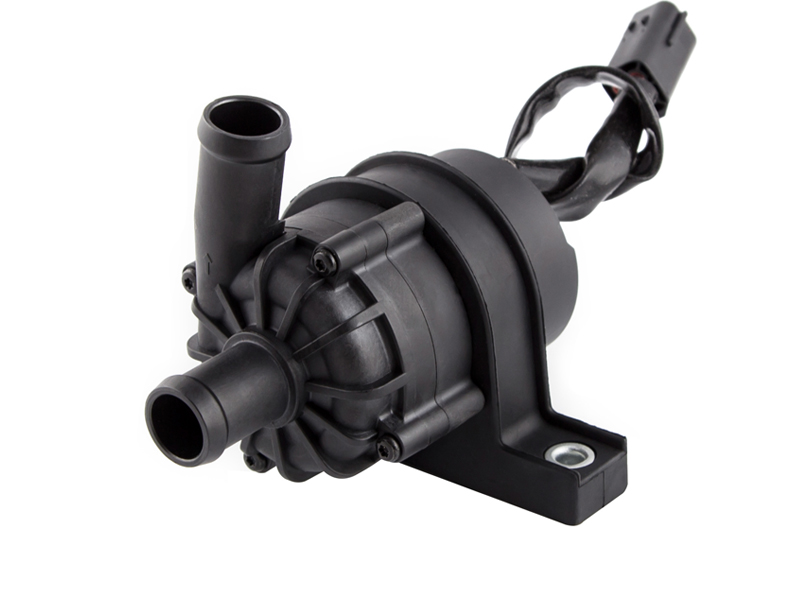

TA60 Car Circulation Pump Applications: Car Engine Cooling Circulation, Car Engine Pre-heating, Heating System(Car Auxiliary Heaters & Parking Heaters), Electric Vehicles Circulation System, Motorcycles Cooling, New Energy Vehicle Thermal Management System
Car Parking Heaters
Motorcycles Cooling
EV Thermal Management System
Function:
PWM speed control, FG (RPM) signal wire
