TA60E High Pressure Liquid Cooling Pump

Mainly used in

EV Liquid-Cooling Charging | Electric Vehicle SuperCharger
Industrial & Commercial Electronics Cooling
Car Engine Cooling Circulation | Car Engine Pre-heating
Energy Storage | Thermal Management Cooling
Liquid Transfer | General Purpose Pumping

TA60E High Pressure Liquid Cooling Pump

Description

Features:

• Intelligent control, FG signal, 6 Intelligent Protection Function
• Long working life >20,000 hours
• Good batch consistency, defect rate as low as 1/100000
• Low heat generation, fast heat dissipation, good cooling effect

Specifications

Model Max Flow
(L/Min)
Max Head
(M)
Rated Voltage
(VDC)
Rated Current
(A)
Rated Power
(W)
TA60E-B24-3521 35 21 24 3.6 86.5

OEM Customization Available



Technical data

Motor Type Brushless DC Motor
Ambient Temperature -40~55℃
Liquid Temperature -40~70℃
Media Water, Coolant
Working Voltage Range 24V: 12~28V
Maximum System Pressure 1.8MPa
Noise ≤50dB(A)
Ideal Life Time >20000 Hours
IP Level IP67
OD(inlet / outlet) 20mm / 20mm
OEM Customization Available
Material Head / Body / Pump chamber / Impeller: PPS
O-Ring: EPDM
Shaft: Stainless Steel
Bearing Sleeve: Graphite
Working Mode Continuous
Power Supply DC power supply
Protection Functions Over-Voltage Protection; Low-Voltage Protection; Dry-running Protection; Over-Temperature Protection; Over-Current Protection; Blocked-Protection; Polarity Protection
Remarks Can't dry-running, not self-priming

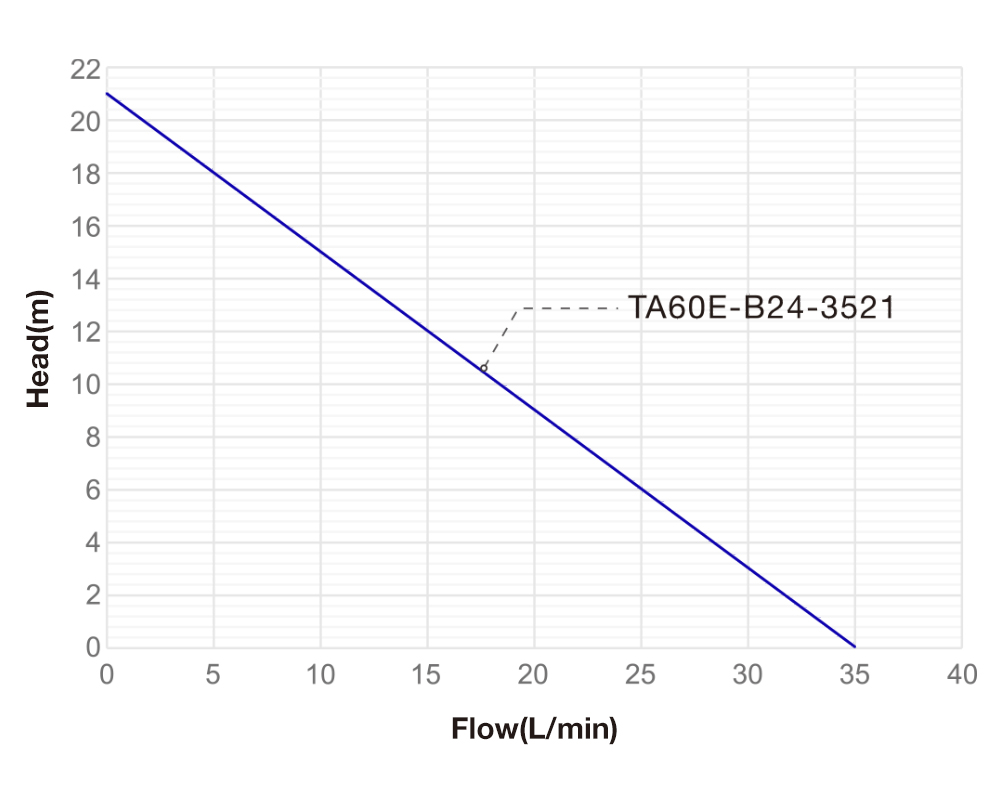

Performance Curve

Performance Curve

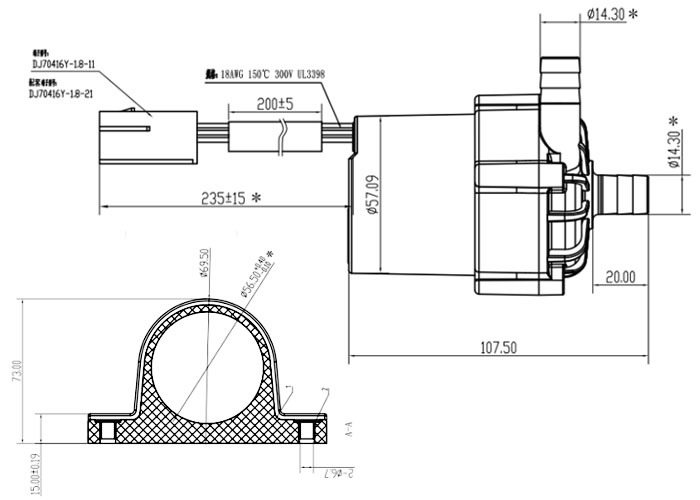

Dimension(mm)

Dimension(mm)

Application

TA60E High Pressure Liquid Cooling Pump Applications: EV charger liquid-cooling system, Chiller, Energy storage cabinet cooling, Industrial & Commercial electronics cooling, Thermal management liquid cooling system, Medical cooling, Server Data Center cooling / CDU cooling

  • Chiller

    Chiller

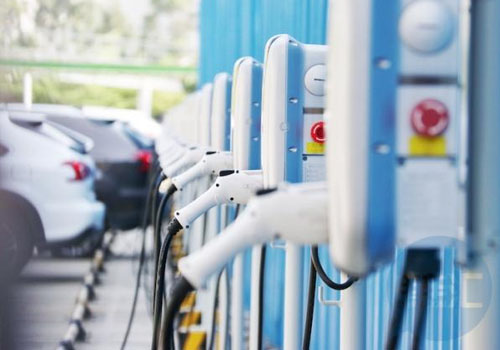

  • EV Charger

    EV Charger

  • Thermal Management

    Thermal Management

  • Medical Cooling

    Medical Cooling

Customization

Function:

PWM, 5V speed control, FG(RPM) signal wire



Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
