TD5 HomeBrewing Beer Pump

Mainly used in

Home Beer Brewing | Hot Water Circulation
Beverage Machine | Liquid Transfer

TD5 HomeBrewing Beer Pump

Description

Features:

Food grade, FDA certified, lead-free
All stainless steel pump body, resistant to high temperatures of 110°C
Intelligent speed adjustment
Long life, low noise
Easy to clean

Specifications

Model Max Flow
(L/Min)
Max Head
(M)
Rated Voltage
(VDC)
Rated Current
(A)
Rated Power
(W)
TD5-A24-2805
28 4.5 24 1.2 28.8

OEM Customization Available



Technical data

Motor Type Brushless DC Motor
Ambient Temperature -40~40℃
Liquid Temperature -40~110℃
Media Water, Coolant
Working Voltage Range 12V: 6~18V
24V: 12~28V
Maximum System Pressure 1.8MPa
Noise ≤50dB(A)
Ideal Life Time >20000 Hours
IP Level IP52
OD(inlet / outlet) NPT 1/2
OEM Customization Available
Material Body / Impeller: Japanese PPE
Head / Pump chamber: Stainless Steel
O-Ring: EPDM
Shaft: Stainless Steel
Bearing Sleeve: Graphite
Working Mode Continuous
Power Supply DC power supply, battery powered
Protection Functions Over-Voltage Protection; Dry-running Protection(Customized); Over-Current Protection; Blocked-Protection; Polarity Protection
Remarks Can't dry-running, not self-priming

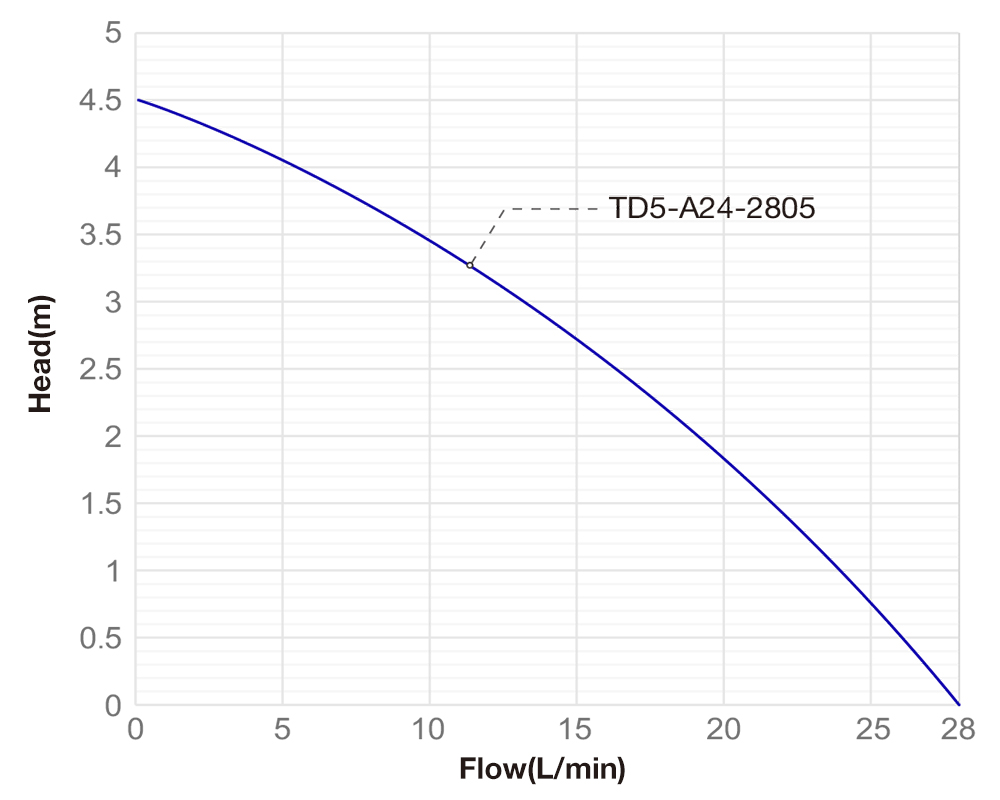

Performance Curve

Performance Curve

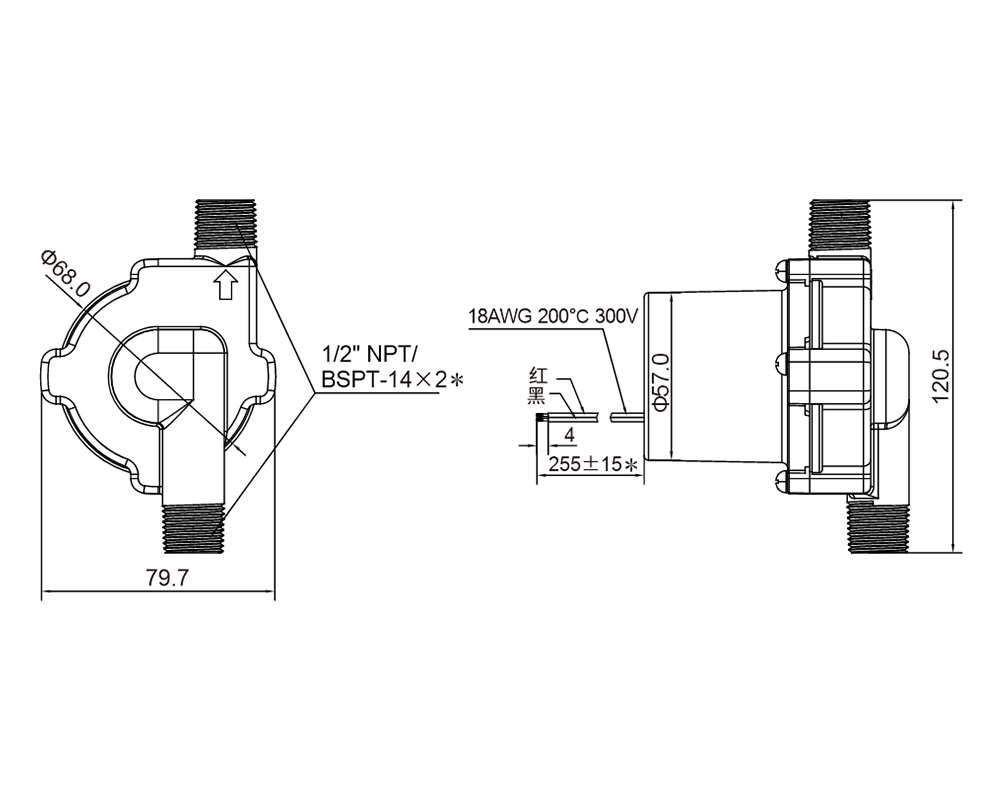

Dimension(mm)

Dimension(mm)

Application

TD5 Hot Water Pump Applications: Home Beer Brewing, Hot Water Circulation, Beverage Machine, Liquid Transfer

  • Home Beer Brewing

    Home Beer Brewing

  • Hot Water Circulation

    Hot Water Circulation

  • Beverage Machine

    Beverage Machine

Customization

Function:

PWM, 0~5V speed control, FG(RPM) signal wire
