The Global Trusted Manufacturer of Micro DC Pump Solutions
Email：info@topsflo.com
High density server | High frequency server
Rack server | Computer cooling
Features:
• Long life
• Ultra efficient, low power consumption
• No leakage, more reliable
• Continuous duty
• Variable speed
• Super quiet
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
|
TDC-A12-0805
|
8.5 | 5 | 12 | 1.32 | 15.84 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Food Grade(Y/N) | Y |
| Ambient Temperature | -40～40℃ |
| Liquid Temperature | -40~70℃ |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V |
| Maximum System Pressure | 1.4MPa |
| Ideal Life Time | >20000 Hours |
| IP Level | IP54 |

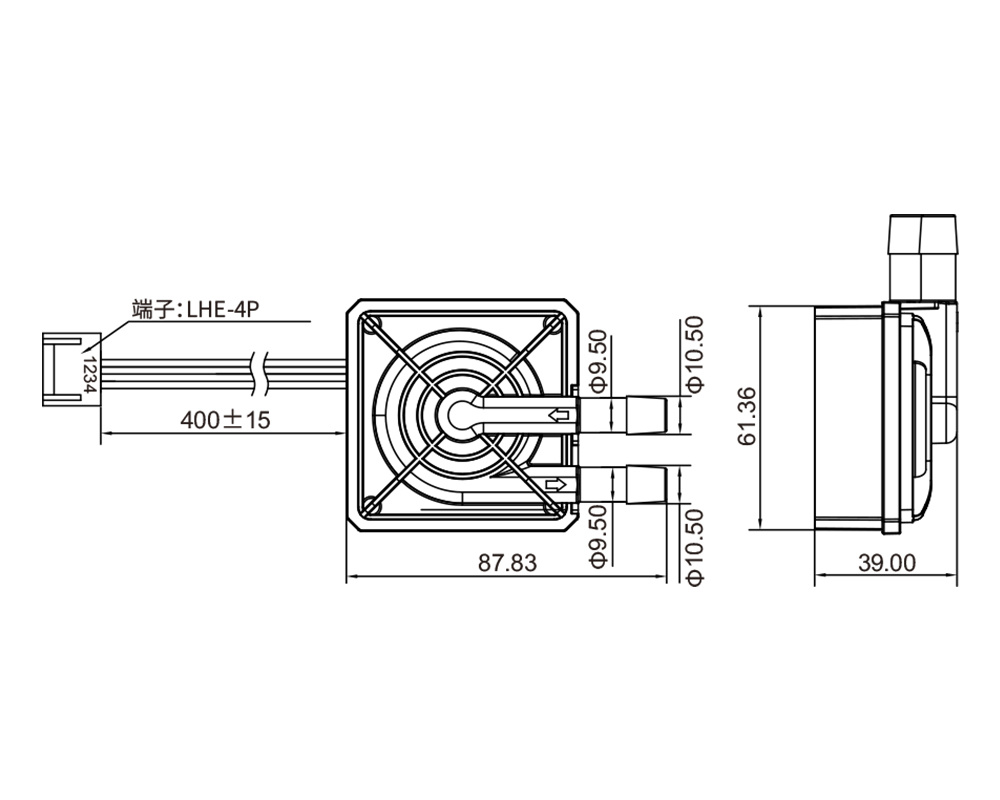

| OD(inlet / outlet) | 9.5mm / 9.5mm OEM Customization Available |
| Material | Head: PPS Body / Pump chamber / Impeller: Japanese PPE O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Over-Voltage Protection; Low-Voltage Protection; Over-Temperature Protection; Over-Current Protection; Blocked-Protection; Polarity Protection; Start Protection |
| Remarks | Can't dry-running, not self-priming |
TDC Mini Cooling Pump Applications: High density server, High frequency server, Rack server, GPU server, Computer cooling, Thermal management, Laser cooling and medical equipment

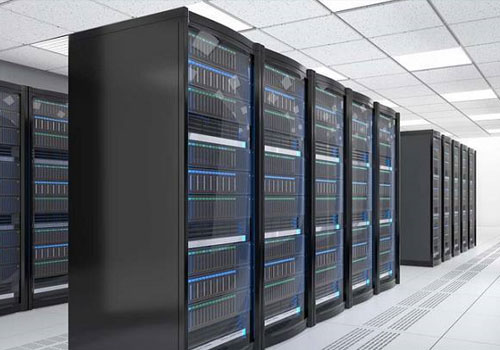

Server Cooling
PC Cooling
Function:
PWM, 0~5V speed control, FG(RPM) signal wire, LHE-4PConnector
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology

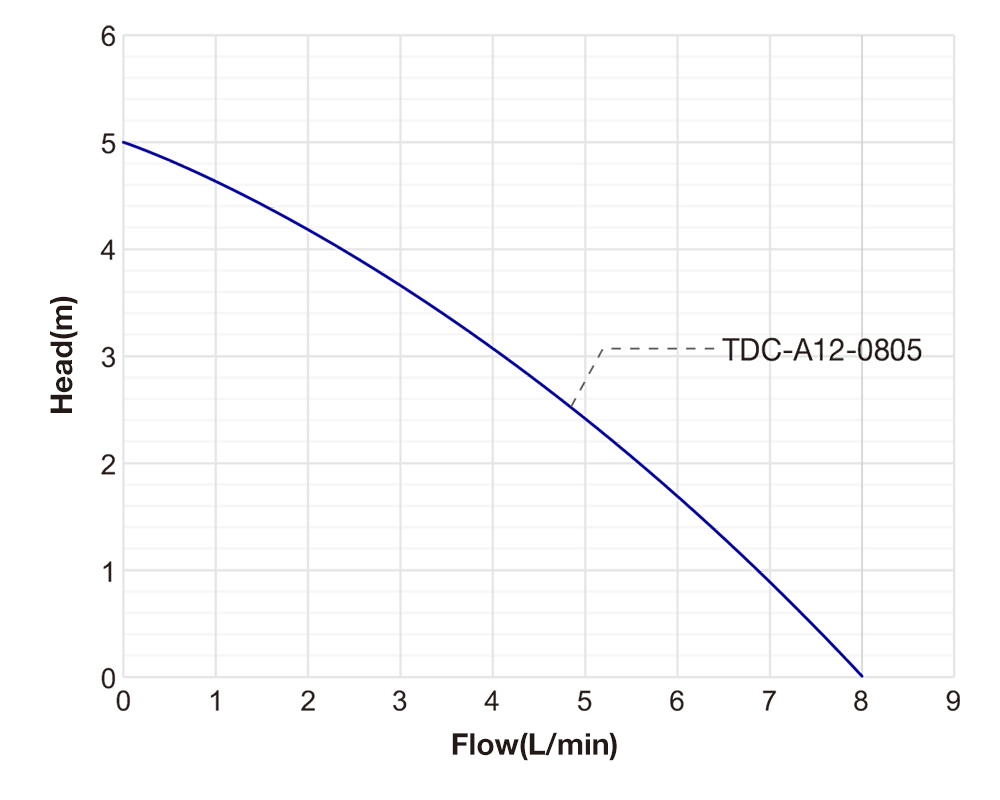

Max Flow：8.5L/MIN
Max Head：5M
You submit the inquiry information, we will contact you in the first time !
