TF30A-B Micro Diaphragm Liquid Pump

Mainly used in

Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring | Fuel Cells | Cleaning & Disinfection
Food | Auto Chemistry Analyzer | Fireplace

TF30A-B Micro Diaphragm Liquid Pump

Description

Features:

• Excellent reliability

• High performance-to-size ratio

• Contamination free transfer

• Maintenance-free

• Highly resistant to aggressive media

• Self-priming and excellent for pressure

• Can run dry,durable

• Little vibration,Low noise

• Small and powerful

Specifications

Liquid Pump
(Item Number)
Vacuum pump
(Item Number)
Rated
Voltage(VDC)
No-load
Current(A)
Max
Pressure(bar)
Max
Vacuum(Kpa)
Max Flow
(L/min)
TF30A-B12-W1004 TF30A-B12-V5004 12 / 24 0.24/0.15 ≥1bar 50 water : 0.4
gas : 4



Technical data

Motor DC motor
Structure Diaphragm Pump
Media Ink, water, most liquids and gases
Material Head Nylon, Membrane EPDM, Valve EPDM
Operating Voltage Range 12V: 9~14VDC
24V: 18~28VDC
Lifetime 1000 hours
Working Mode Interrupt
Work Temperature Rise <70℃
Customized Support 5V,PWM, FG, Material: membrane / valve / pump head

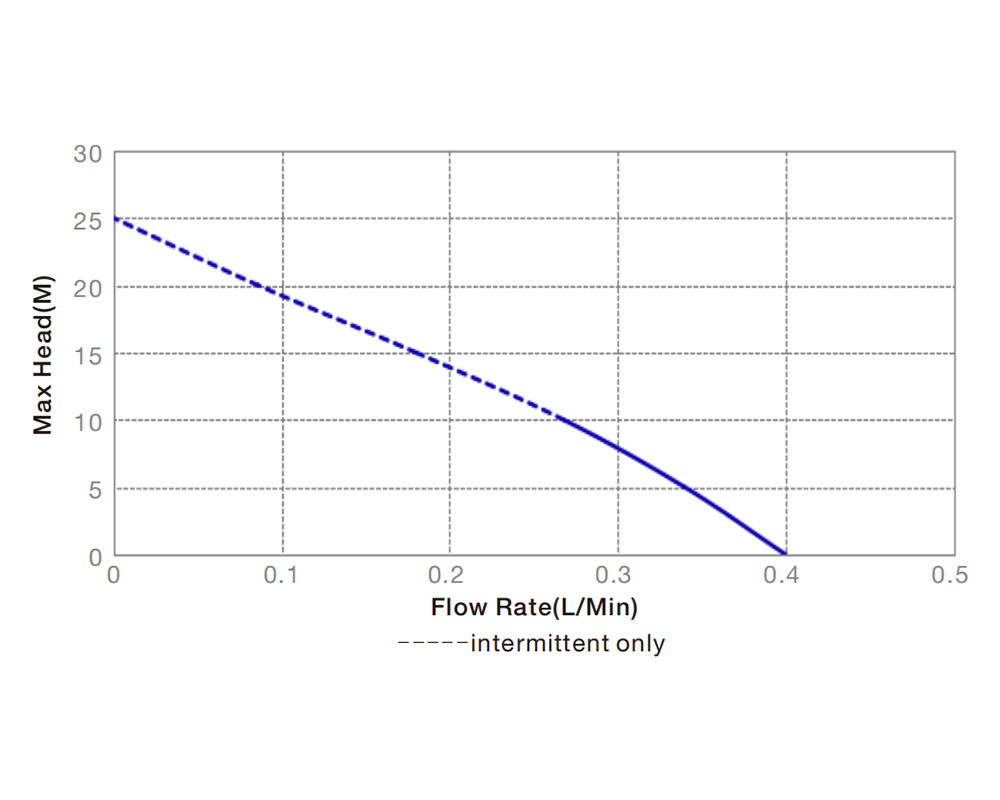

Performance Curve

Performance Curve

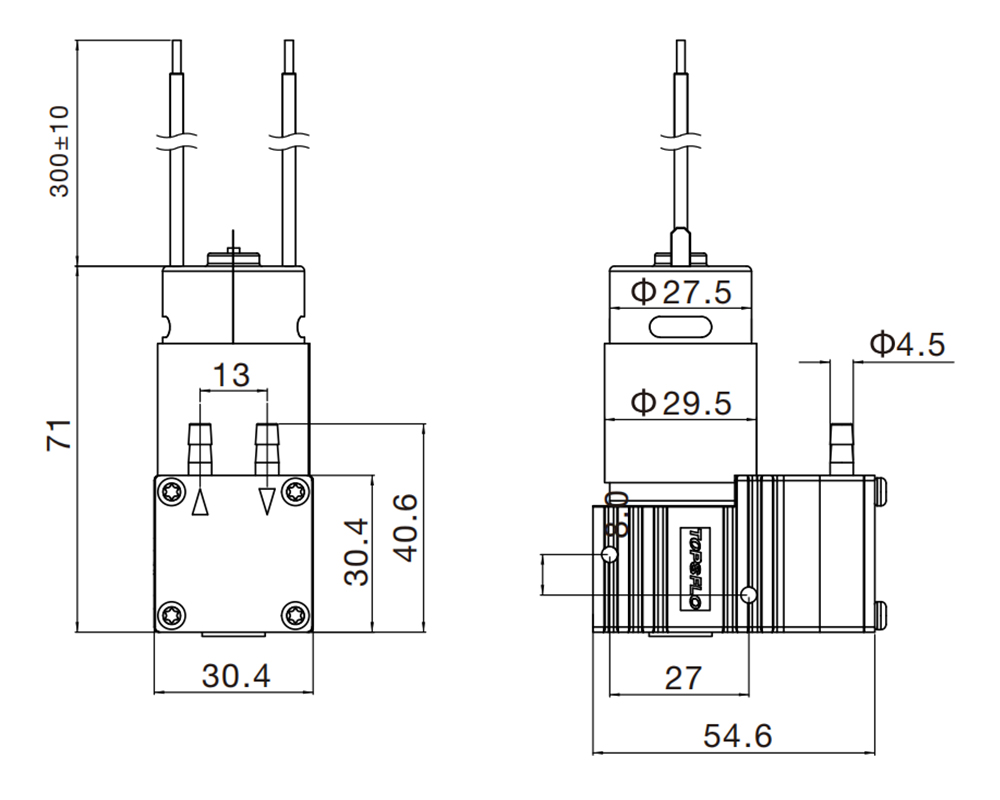

Dimension(mm)

Dimension(mm)

Application

TF30 Series Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

  • Analytical Instruments

    Analytical Instruments

  • Ink Printer

    Ink Printer

  • Medical Liquid Waste Handling

    Medical Liquid Waste Handling

  • Fireplace

    Fireplace
