TF30B-D Micro Diaphragm Liquid Pump

Mainly used in

Contact Customized Product Catalog

Description Specifications Performance Curve Application Customization Related Products

Description

Features:

• Excellent reliability

• High performance-to-size ratio

• Contamination free transfer

• Maintenance-free

• Highly resistant to aggressive media

• Self-priming and excellent for pressure

• Can run dry,durable

• Little vibration,Low noise

• Small and powerful

Specifications

Liquid Pump
(Item Number)

Vacuum pump
(Item Number)

Rated
Voltage(VDC)

No-load
Current(A)

Max
Head(bar)

Max
Vacuum(Kpa)

Max Flow
(L/min)

TF30B-D12-W1003

(outside controller)

TF30B-D12-V6504

(outside controller)

6 /12 / 24

0.4/0.24/0.15

≥1bar

water : 0.35
gas : 4

Technical data

Motor	BLDC motor
Structure	Diaphragm Pump
Media	Ink, water, most liquids and gases
Material	Head Nylon, Membrane EPDM, Valve EPDM
Operating Voltage Range	12V: 9~14VDC 24V: 18~28VDC
Lifetime	15000 hours
Working Mode	Interrupt
Work Temperature Rise	<70℃
Customized Support	5V,PWM, FG, Material: membrane / valve / pump head

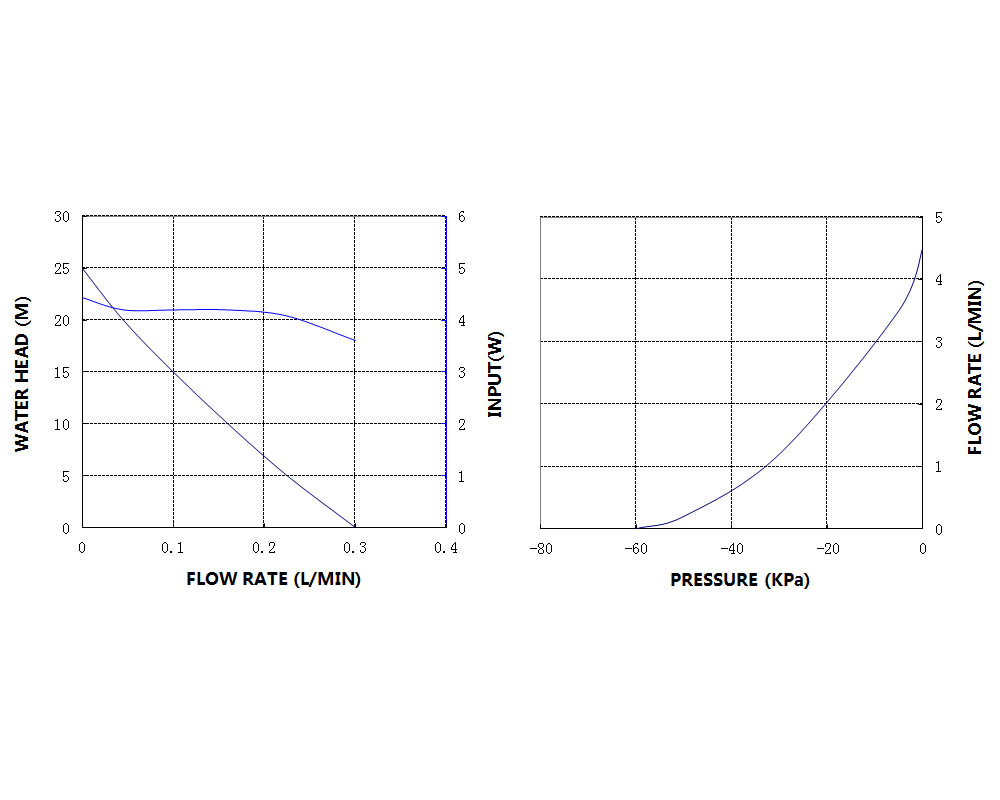

Performance Curve

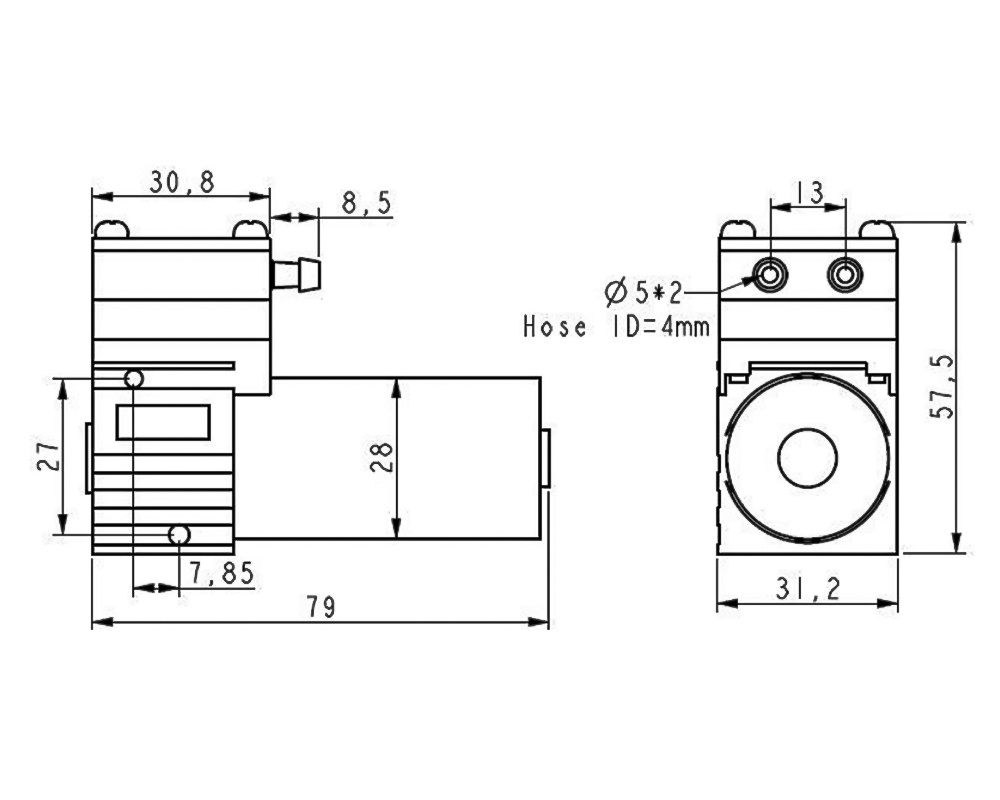

Dimension(mm)

Application

TF30 Series Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

Analytical Instruments
Ink Printer
Medical Lqiuid Waste Handling
Fireplace
