TF30B-H Micro Diaphragm Liquid Pump

Mainly used in

Contact Customized Product Catalog

Description Specifications Performance Curve Application Customization Related Products

Description

Features:

• Excellent reliability

• High performance-to-size ratio

• Contamination free transfer

• Maintenance-free

• Highly resistant to aggressive media

• Self-priming and excellent for pressure

• Can run dry,durable

• Little vibration,Low noise

• Small and powerful

Specifications

Liquid Pump (Item Number)	Vacuum pump (Item Number)	Rated Voltage(VDC)	No-load Current(A)	Max Head(bar)	Max Vacuum(Kpa)	Max Flow (L/min)
TF30B-H12-W1003	TF30B-H12-V6004	12 / 24	0.24/0.15	≥1bar	60	water : 0.35 gas : 4

Technical data

Motor	BLDC motor
Structure	Diaphragm Pump
Media	Ink, water, most liquids and gases
Material	Head Nylon, Membrane EPDM, Valve EPDM
Operating Voltage Range	12V: 9~14VDC 24V: 18~28VDC
Lifetime	10000 hours
Working Mode	Interrupt
Work Temperature Rise	<70℃
Customized Support	5V,PWM, FG, Material: membrane / valve / pump head

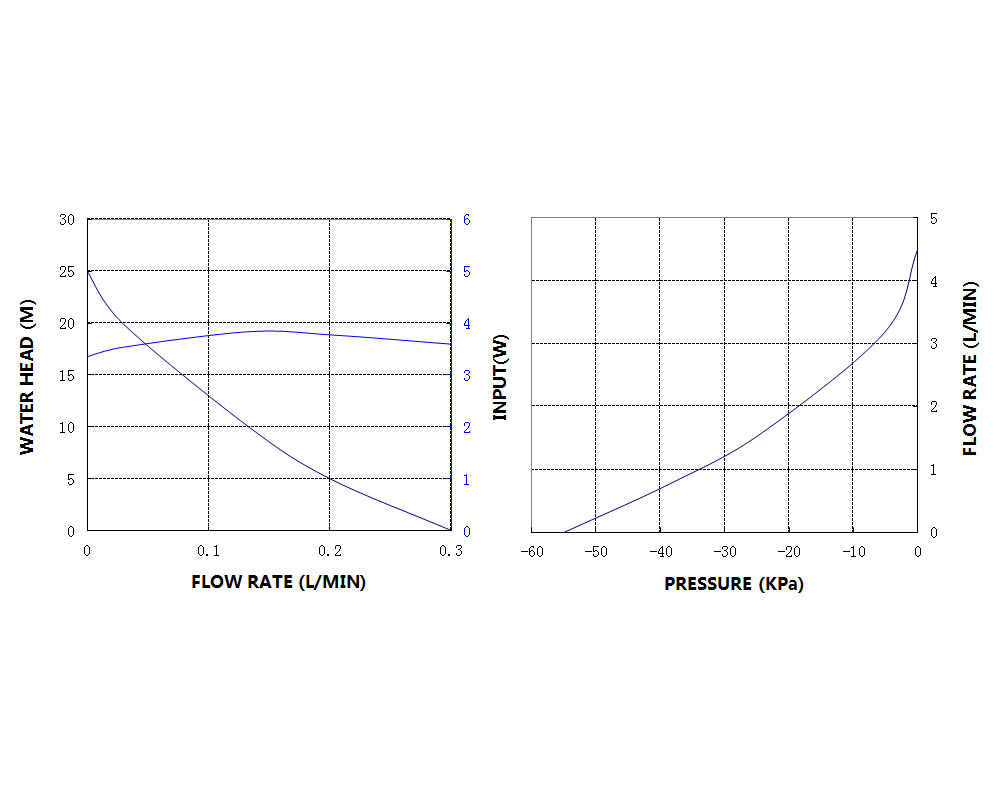

Performance Curve

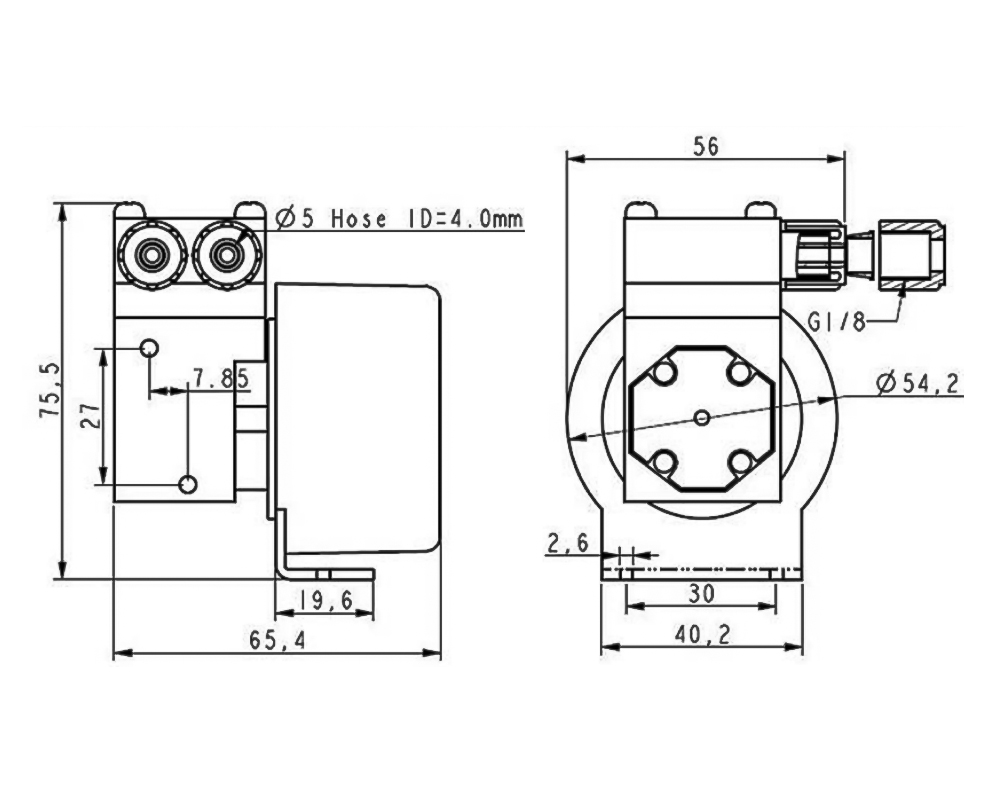

Dimension(mm)

Application

TF30 Series Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

Analytical Instruments
Ink Printer
Medical Liquid Waste Handling
Fireplace

Customization

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
