TG-01 Brushless Micro DC Gear Pump

Mainly used in

Coffee Machine | Ice Making Machines
Drinking | Beverage Dispensing
Medical Devices | Microplate Washer

Contact Customized Product Catalog

Description Specifications Performance Curve Application Customization Related Products

Description

Direct Drive DC Micro Gear Pump Features:

• An Ultra-compact design with small size and light weight, saving installation space

• Wetted materials meet FDA standards, which is safe for direct food contact

• Low pulsation with smoother water flow

• Easy maintenance and reliable work

• Low fluid loss and high pressure

Specifications

Model	Rated Volatage (VDC)	No load Current (A)	Max. Load Current (A)	Head (Bar)	Flow (L/min)	Suction Height ( M)
TG01-A12-C01-0204	12	0.9	2.0	4	2.5	0.7
TG01-A24-C01-0204	24	0.6	1.2	4	2.5	0.7

Ambient temperature: -25°C~70°C(except for freezing)
Liquid temperature: 0°C~80°C
Working mode: Interrupt
Operating voltage range: 12V pump range is 9~15V, 24V pump range is 18~28V
Lifetime reference: 3000H

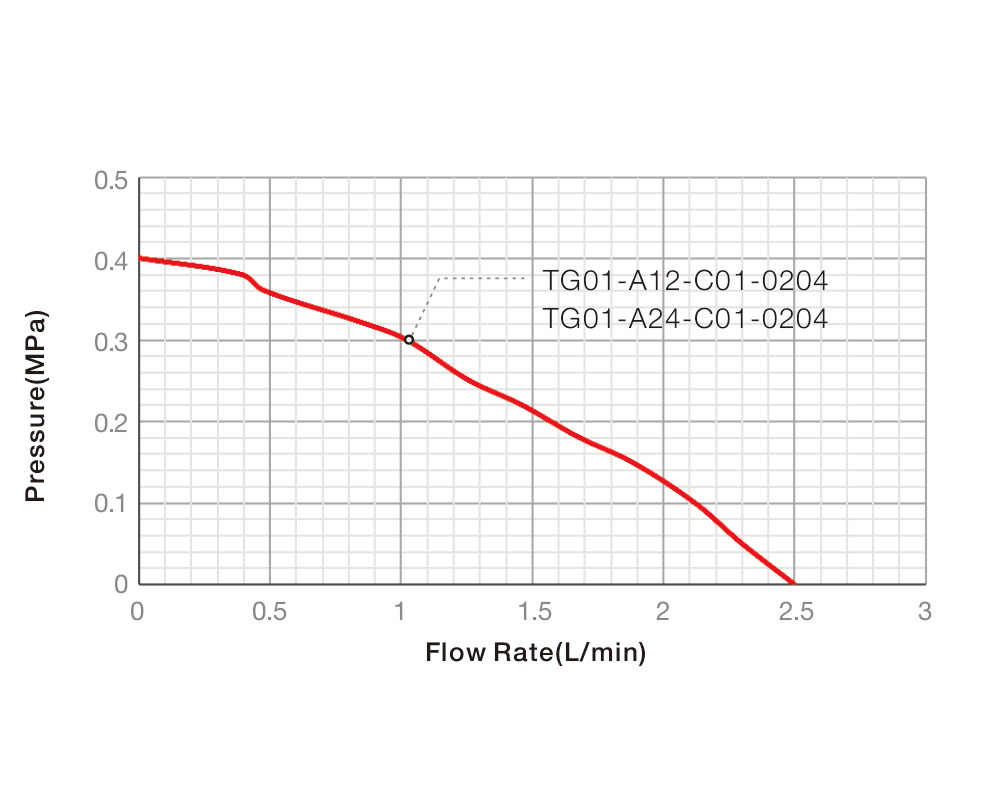

Performance Curve

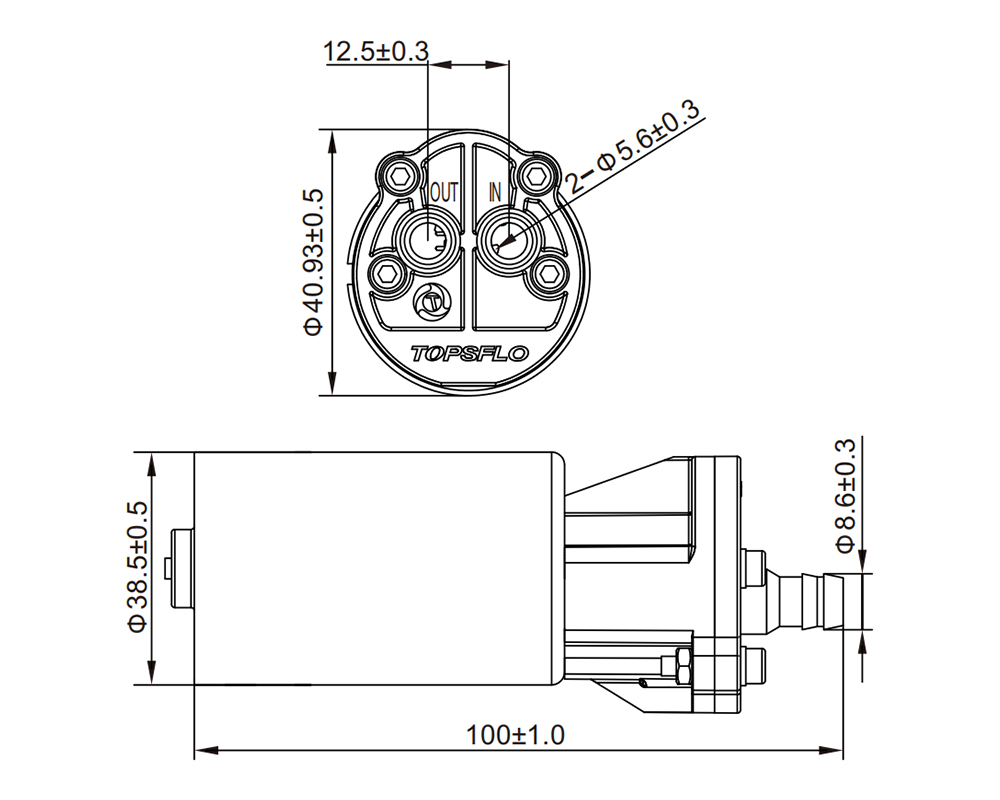

Dimension(mm)

Application

TG-01 Micro DC Gear Pump Applications: Automatic Commercial Coffee Machine Milk Pump, Ice making Machines, Coffee Making Machines, Drinking Fountains, Wine Dispensing, Beverage Dispensing, Spraying, Sanitization, Food Equipment, Medical devices, Microplate Washer

Coffee Machine
Microplate Washer
Ice-making Machines
Vending Machine

Customization

Function:

Electronic functions, Gear materials, Terminal harnesses

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
