Food grade, safer
• Select high-quality raw materials from all over the world, and all parts in contact with liquids have obtained FDA approval WRAS certification
Long-term high temperature resistance
• Imported raw materials, high temperature resistance; long-term high temperature use, lower temperature rise, more stable
High temperature flow stability
• At 97-100°C, the output flow is stable, which is about 21% higher than that of the same power pump, and the flow loss rate is within 10%.
Quiet
• Unique design, ultra-low noise
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-A02-A12-0302 | 3 | 1.8 | 12 | 0.28 | 3.36 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Foog Grade(Y/N) | Y |
| Ambient Temperature | -40~40°C |
| Liquid Temperature | -40°C~100°C |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V |
| Maximum System Pressure | 1.8MPa |
| Noise | 25dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP68 |

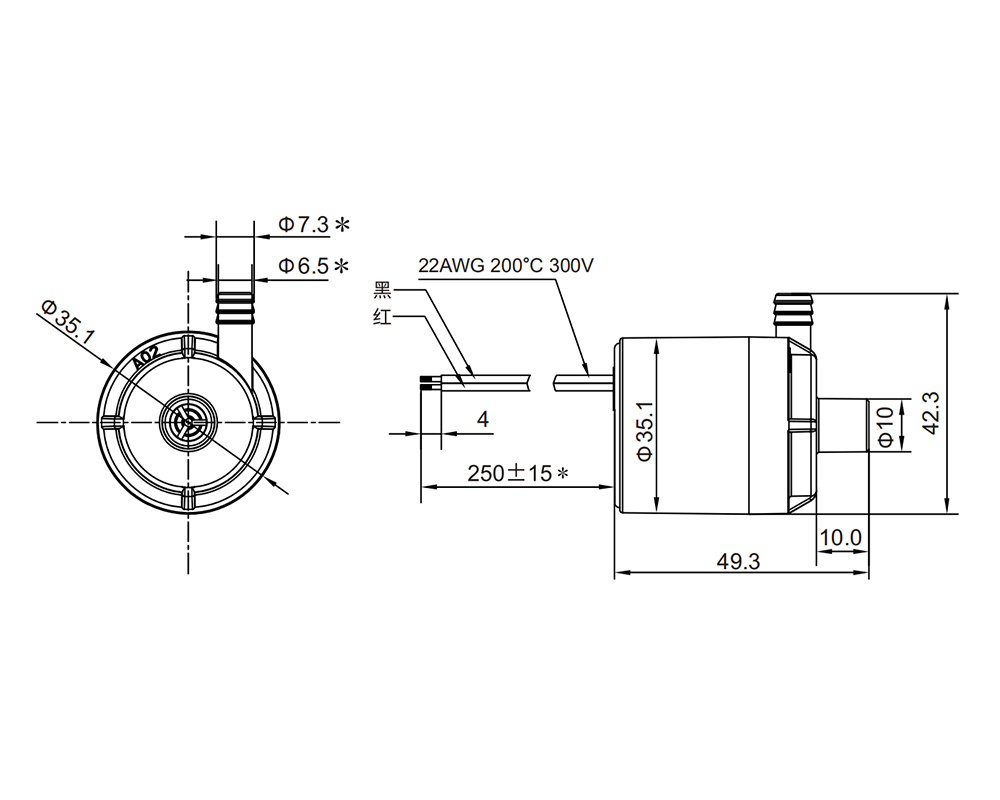

| OD(inlet / outlet) | 10mm / 7.3mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: Silicone Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply |
| Protection Functions | Blocked-Protection |
| Remarks | Can't dry-running, not self-priming |
TL-A02 Food Grade Pump Applications: Water Dispenser,Coffee Maker,Vending Machine,Beverage Dispenser,Water Purifier,Hydroponics,Air-conditioning Fan,Fountain,Humidifier,Water Cooler
Coffee Machine
Air-conditioning Fan
Humidifier
Water Dispenser
Function:
PWM, 0~5V speed control, FG(RPM) signal wire
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification

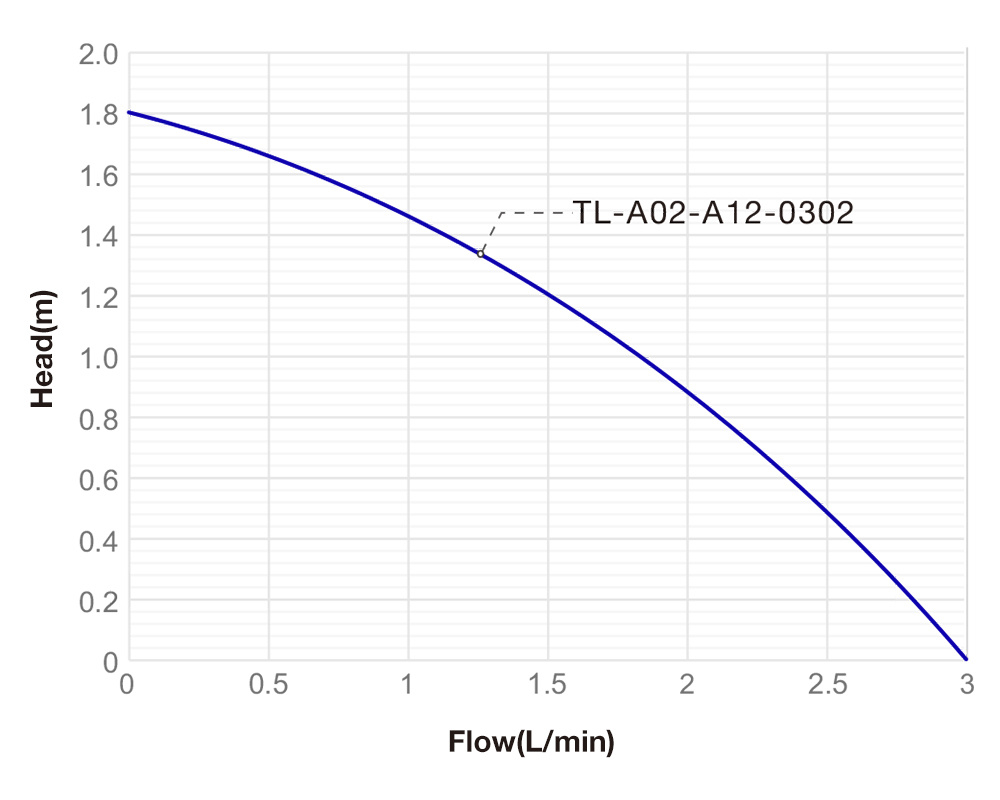

Max Flow：3L/MIN
Max Head：1.8M
