Food grade, safer
• Select high-quality raw materials from all over the world, and all parts in contact with liquids have obtained FDA approval WRAS certification
Long-term high temperature resistance
• Imported raw materials, high temperature resistance; long-term high temperature use, lower temperature rise, more stable
High temperature flow stability
• At 97-100°C, the output flow is stable, which is about 21% higher than that of the same power pump, and the flow loss rate is within 10%.
Quiet
• Unique design, ultra-low noise

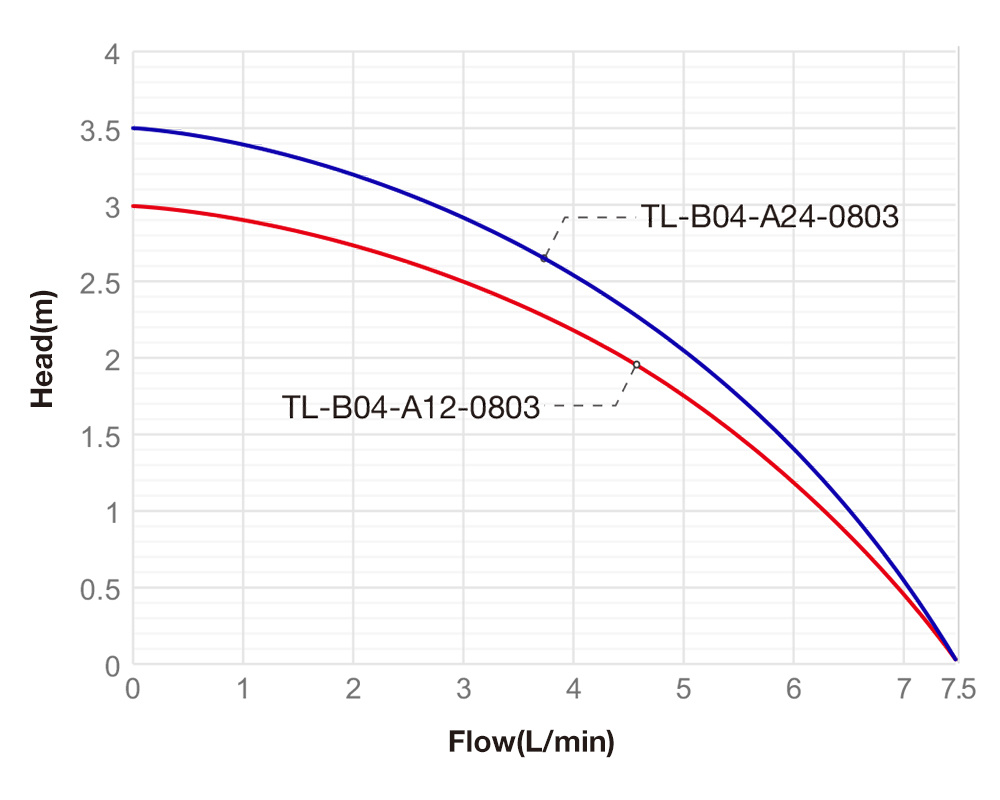

| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-B04-A12-0803 | 7.5 | 3 | 12 | 0.75 | 9 |
| TL-B04-A24-0803 | 7.5 | 3.5 | 24 | 0.45 | 10.8 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Foog Grade(Y/N) | Y |
| Ambient Temperature | -40~40°C |
| Liquid Temperature | 98°C |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V 24V: 12~28V |
| Maximum System Pressure | 1.4MPa |
| Noise | ≤35dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP66 |

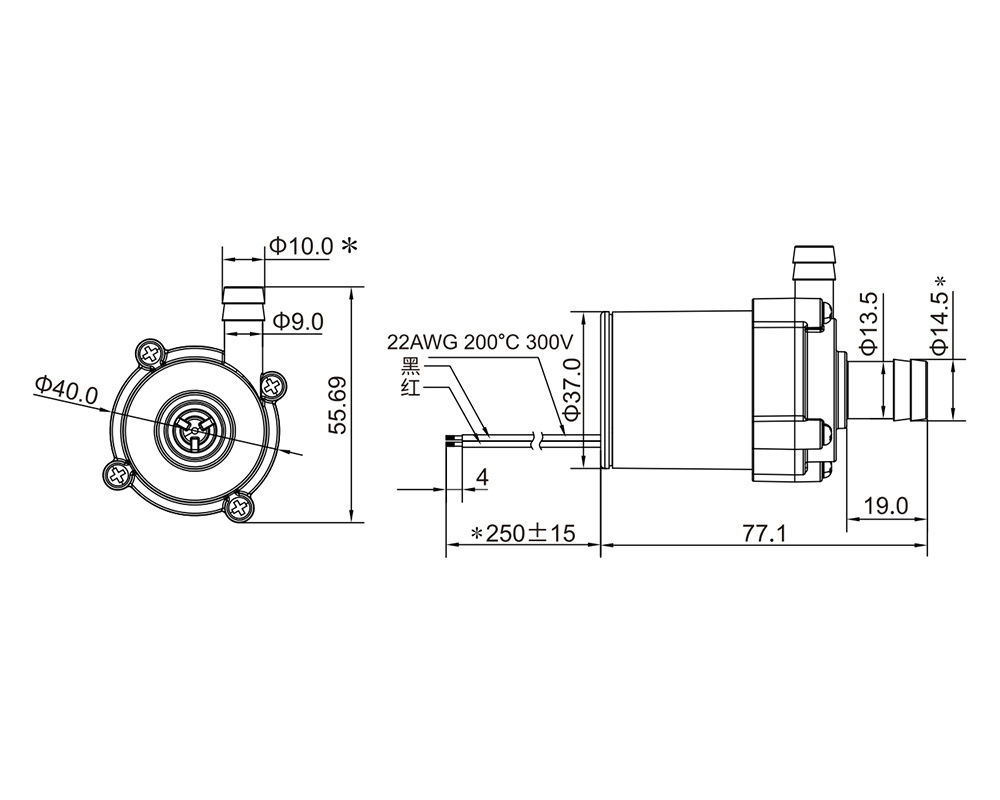

| OD(inlet / outlet) | 13.5mm / 9.0mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: Silicone Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Blocked-Protection |
| Remarks | Can't dry-running, not self-priming |
TL-B04 Food Grade Pump Applications: Under Sink Hot Water Dispenser, Instant Filtered Boiling, Chilled & Sparkling Water Systems, Water Purifier, Milk Dispenser, Coffee Makers, Water Cooler, Steam Oven
Coffee Machine
Instant Filtered Boiling
Hot Water Dispenser
Beverage Dispenser
Function:
PWM, 0~5V speed control, FG(RPM) signal wire
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Max Flow：12L/MIN
Max Head：8M
