TL-B08 Micro Brushless DC Water Pump
Mainly used in
Under Sink Hot Water Dispenser | Instant Filtered Boiling
Chilled & Sparkling Water Systems
Water Purifier | Milk Dispenser | Coffee Makers
Water Cooler | Steam Oven
Description
No electronic failure
• The electronic components are all international first-line brands, which can effectively prevent electronic failure
• The design of the electronic scheme is sufficient, and the thickerdouble-sided PCB board is used
① better heat dissipation, can work at high temperature for long time
② lower temperature rise, higher reliability
• Full set of electrostatic protection
• Professional electronic engineer with rich design experience in the automotive industry
• Professional evaluation means (high temperature life test + temperature tester + environmental test box)
No crack or leak in the pump chamber
• The stator and rotor of magnetic water pump are completely isolated and never leakage.
• Materials imported from Japan, no deform or leak under high temperature and high pressure environment for a long time. Test higher than industry standards, the pressure is above 18bar
Quiet
• One-piece injection molded magnetic silent rotor, one-time molding, ultra-quiet, good noise batch consistency
① High mold precision
② Long lifespan, low noise and stable
③ Same batch of products has good noise consistency
Specifications
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-B08-A12-0905 | 9 | 5 | 12 | 0.86 | 10.5 |
| TL-B08-A24-1208 | 12 | 8 | 24 | 0.78 | 18.72 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Ambient Temperature | -40～40℃ |
| Liquid Temperature | -40~70℃ |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 9~18V 24V: 12~28V |
| Maximum System Pressure | 1.8MPa |
| Noise | ≤34dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP67 |
| OD(inlet / outlet) | 13.0mm / 9.0mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: EPDM Shaft / Gasket: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery, powered |
| Protection Functions | Over-Voltage Protection; Over-Current Protection; Blocked-Protection; Dry-running Protection; Lower-Voltage Protection; Polarity Protection |
| Remarks | Can't dry-running, not self-priming |

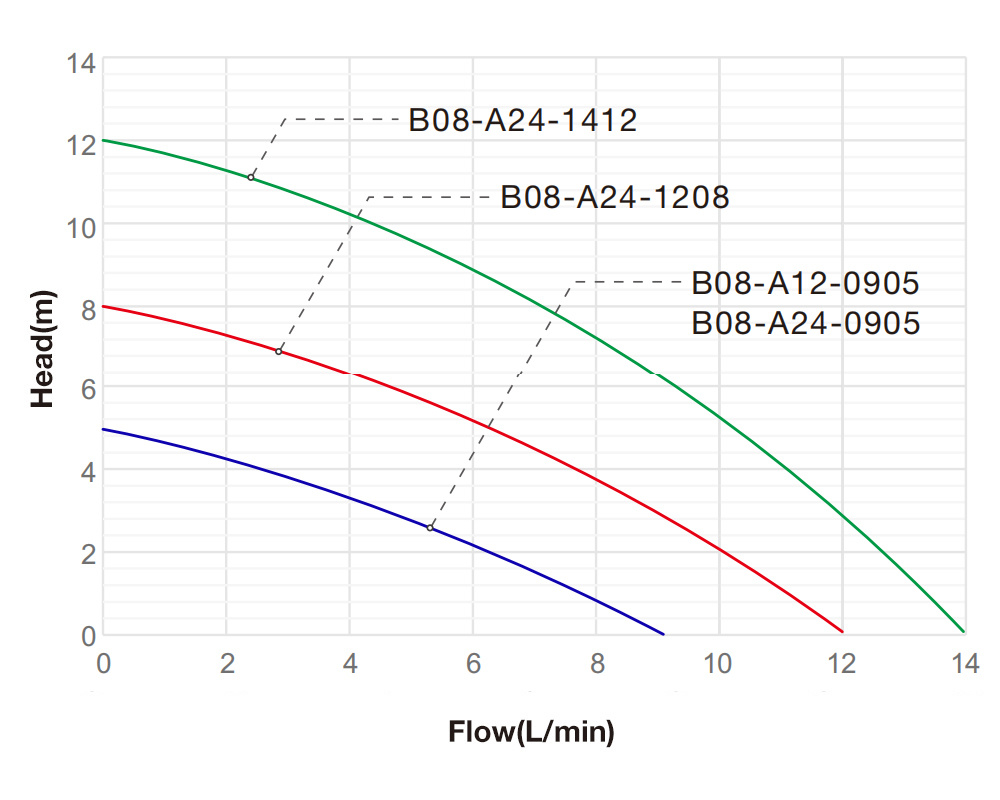

Performance Curve

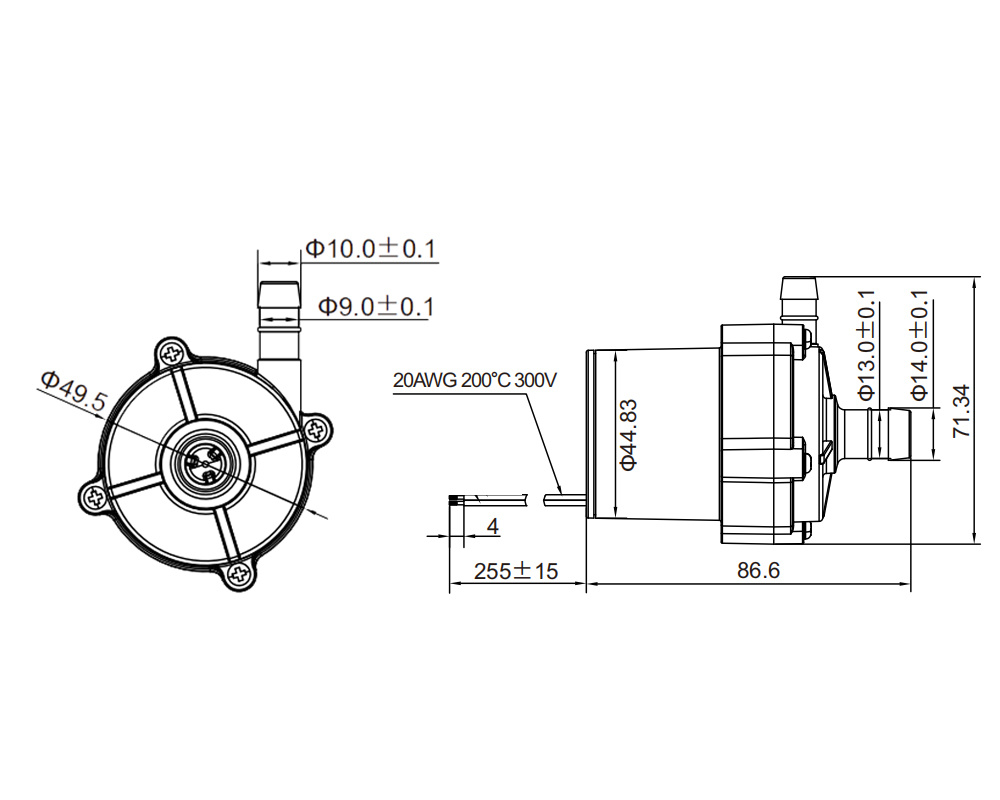

Dimension(mm)
Application
TL-B04 Food Grade Pump Applications: Under Sink Hot Water Dispenser, Instant Filtered Boiling, Chilled & Sparkling Water Systems, Water Purifier, Milk Dispenser, Coffee Makers, Water Cooler, Steam Oven
-
Medical
-
Laser Cutting Printer
-
Truck Air-conditioning System
-
Beverage Dispenser
Customization
Function:
PWM, 0~5V speed control, FG(RPM) signal wire
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
