Features:
• Unique design, 25dB (A), ultra-low noise
• Imported raw materials, resistant to 100°C high temperature, no leakage
• Small size, space-saving, light-weight
• Low-power consumption, energy-saving and environmental protection
• Hot water circulation, constant temperature heating, work continuously

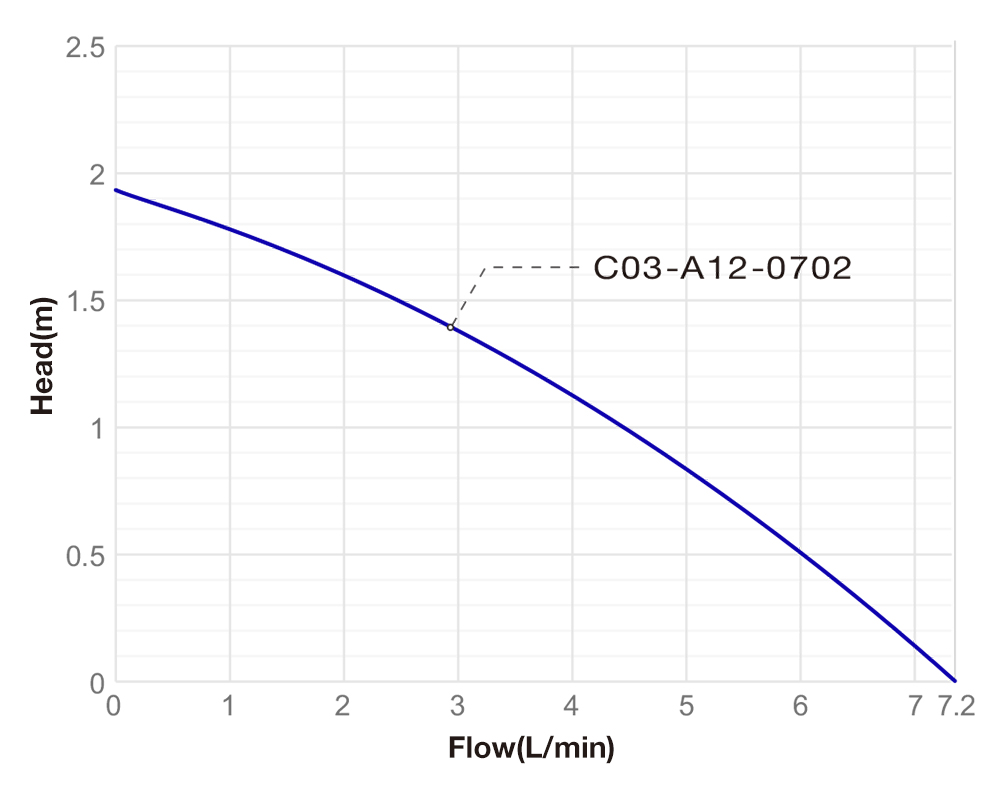

| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-C03-A12-0702 | 7.2 | 1.9 | 12 | 0.38 | 4.56 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC motor |
| Ambient Temperature | -40~40°C |
| Liquid Temperature | -40~70°C |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~14V |
| Maximum System Pressure | 1.4MPa |
| Noise | 25dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP66 |

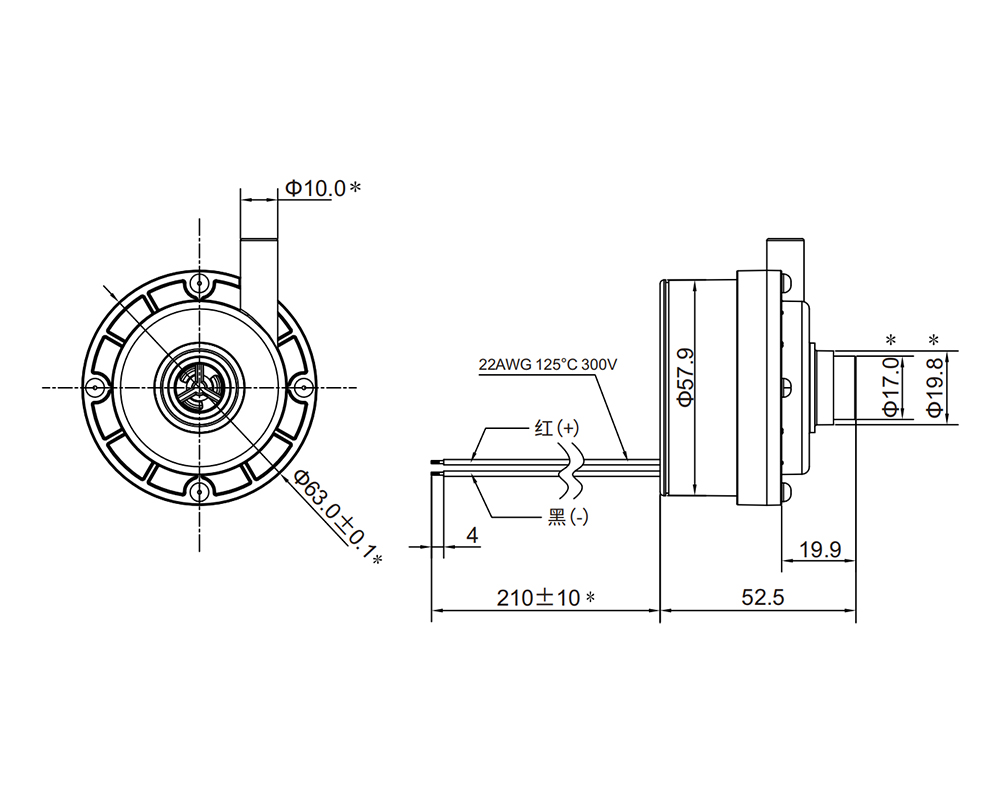

| OD(inlet / outlet) | 17mm / 10mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: Silicone Shaft / Gasket: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Blocked-Protection; Over-Current Protection; Polarity Protection; Over-temperature Protection |
| Remarks | Can't dry-running, not self-priming |
TL-C03 Mini Water Circulation Pump Applications: Water Heater Mattress, Hot Water Mattress, Home Circulating System, Computer Cooling Circulation, Liquid Transfer, General Purpose Pumping
Water Heated Mattress
PC Cooling
Function:
PWM, 0~5V speed control, FG(RPM) signal wire
