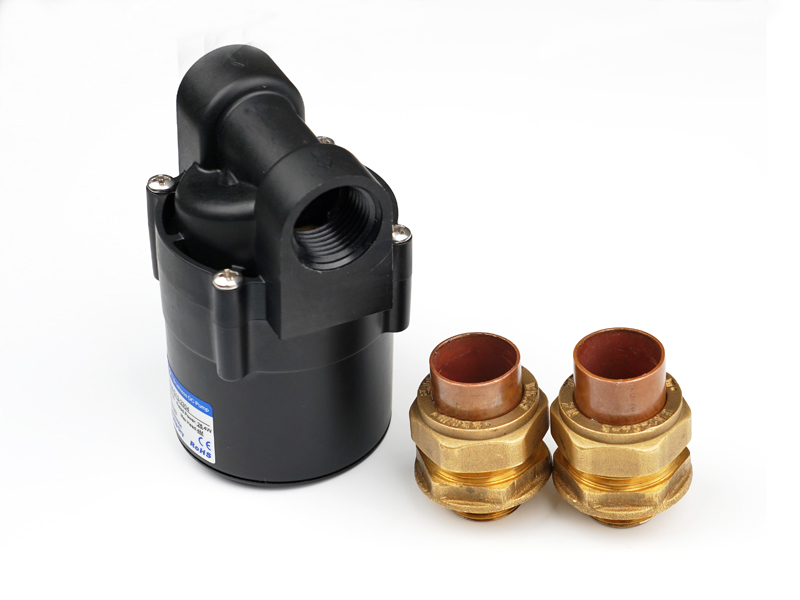

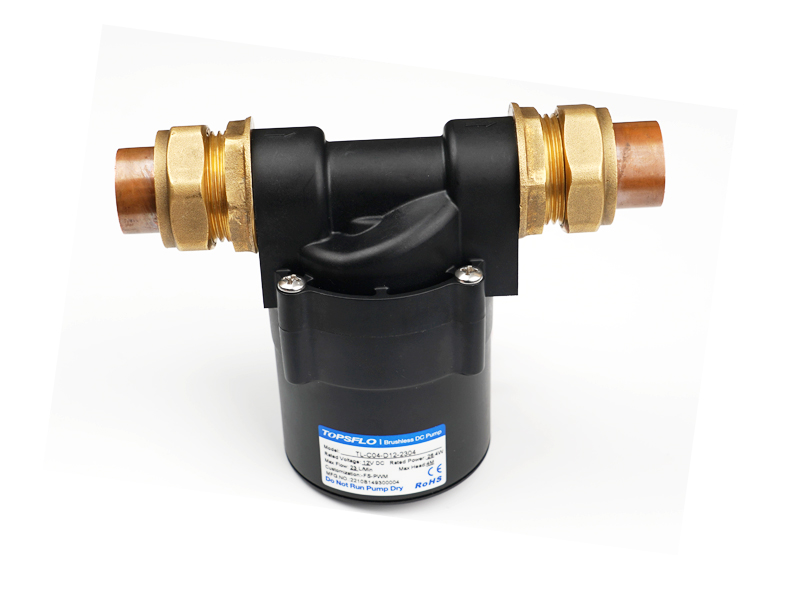

TL-C04-D Hot Water Circulation Pump
Mainly used in
Hot Water Tank | Heat Exchange Tank
Heat Pump DHW Tank | Bolier Tank
Water Heater | Heating System | Industrial Cooling
Description
The brushless DC micro water pump adopts advanced magnetic drive technology, the liquid rotates at high speed through the permanent magnet rotor, the static seal design replaces the traditional mechanical shaft seal, the liquid is completely isolated from the motor, avoids the problem of liquid leakage, and improves the service life and performance of the product.
• The brushless motor has a lifetime in excess of >20,000 hours
• No leakage: one-time injection rotor; static seal design, the liquid is completely isolated from the motor
• The parameter can replace the LAING D5 pump
• Protection Function: Over-Current Protection, Over-Voltage Protection, Blocked-Protection, Dry-running Protection
Specifications
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-C04-D12-2304 | 23 | 4 | 12 | 2.2 | 26.4 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Ambient Temperature | -40～40℃ |
| Liquid Temperature | 0~75℃ |
| Media | Water |
| Working Voltage Range | 12V: 6~18V |
| Maximum System Pressure | 1.8MPa |
| Noise | ≤33dB(A) |
| Ideal Life Time | 20000Hours |
| IP Level | IP68 |
| OD(inlet / outlet) | G1/2 / G1/2 OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Intermittent |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Over-Voltage Protection; Over-Current Protection; Blocked-Protection; Dry-running Protection |
| Remarks | Can't dry-running, not self-priming |

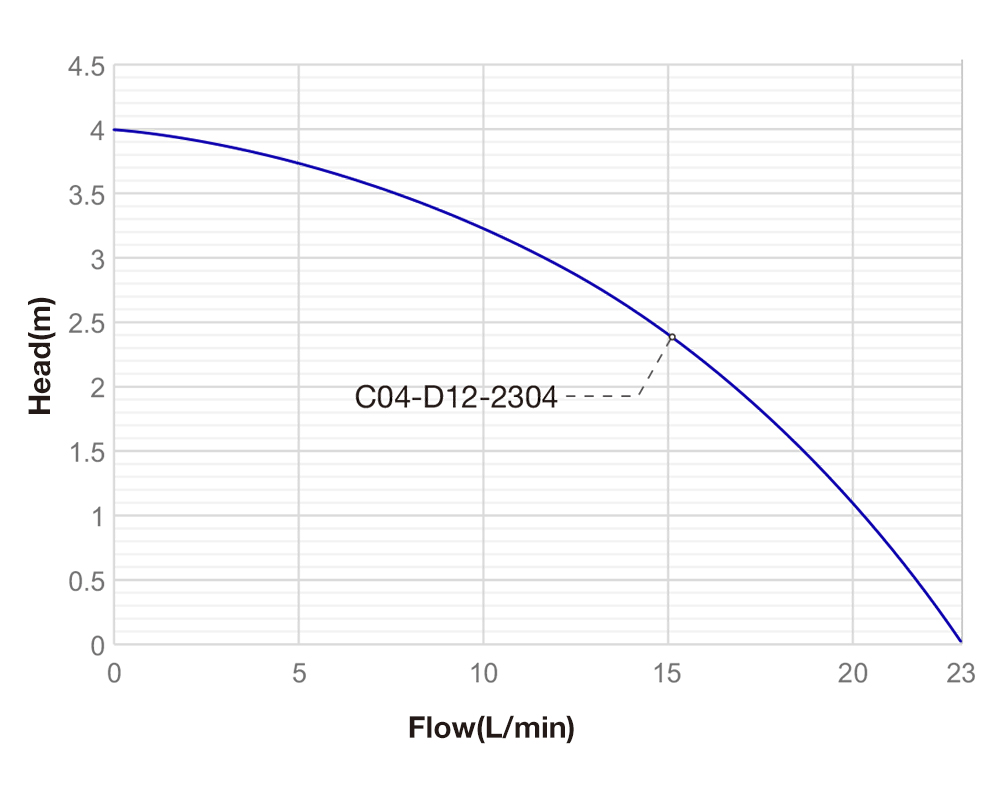

Performance Curve

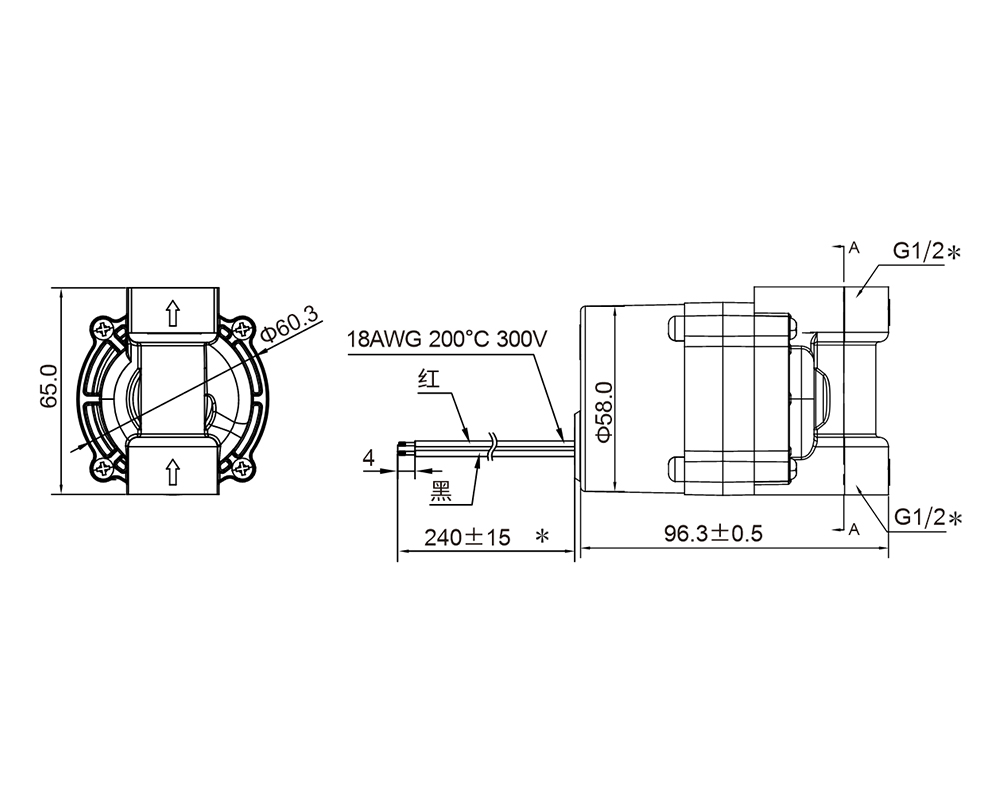

Dimension(mm)
Application
TL-C04-D DC Circulation Pump Applications: Hot Water Tank/Heat Exchange Tank, Hot Water Circulating systems for homes, RV's and boats.
Water heater, Heat Pump DHW Tank, Bolier Tank, Domestic boiler, Industry Cooling, Circulation system
-

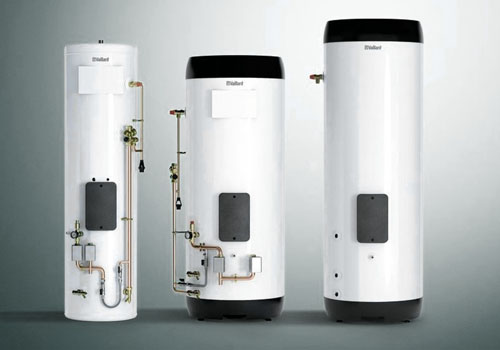

Bolier Tank
-

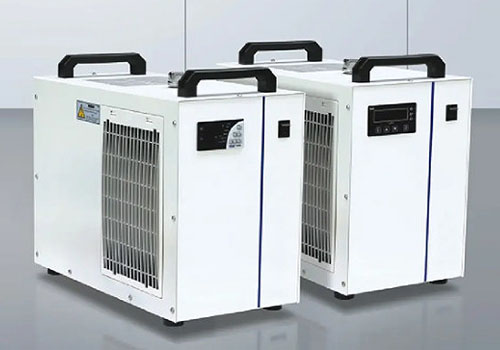

Industry Cooling System
-
RV Hot Water Circulating Systems
Customization
Function:
PWM, 0~5V speed control, FG(RPM) signal wire, S submersible
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
