Features:
• Large flow, high pressure, powerful boost
• Instant start in 0.1 seconds
• Unique design, low noise
• Small size, easy to install, no need to change the original configuration of the toilet
• High waterproof level, customizable diving function
• Protection Function: Over-Current Protection, Over-Voltage Protection, Blocked-Protection, Dry-running Protection

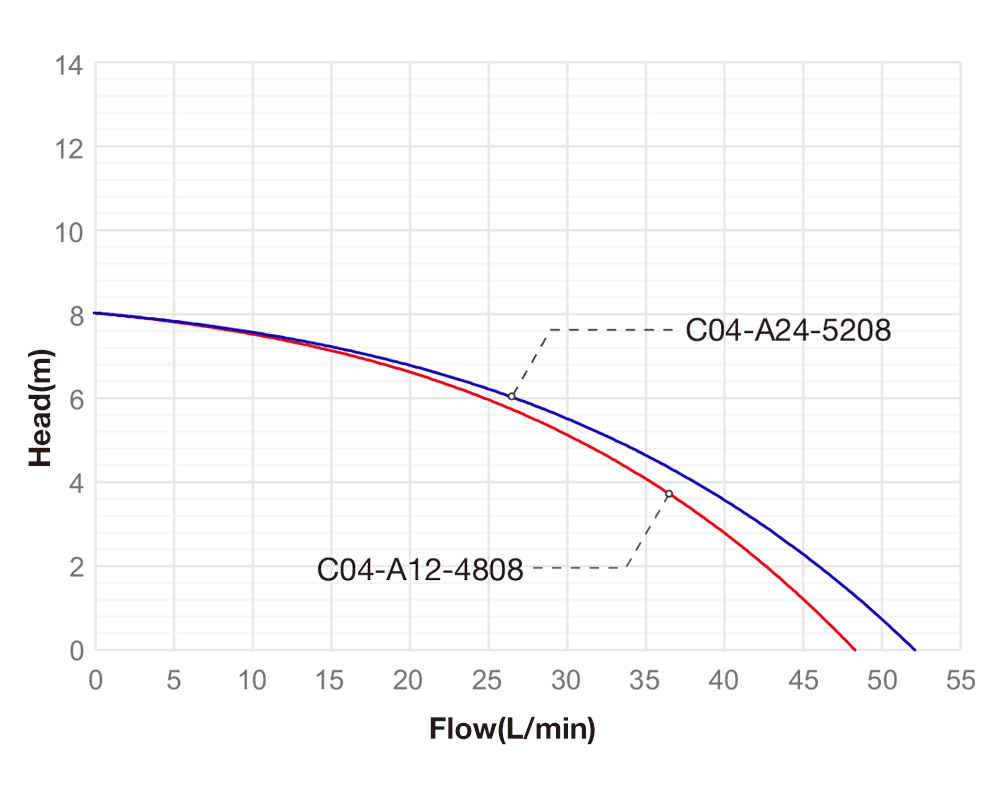

| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TL-C04-A12-4808 | 48 | 8 | 12 | 4.7 | 56.4 |
| TL-C04-A24-5208 | 52 | 8 | 24 | 2.8 | 67.2 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Ambient Temperature | -40~40°C |
| Liquid Temperature | 0~40°C |
| Media | Water, Coolant |
| Working Voltage Range | 12V: 6~18V 24V: 12~28V |
| Maximum System Pressure | 1.8MPa |
| Noise | 40dB(A) |
| Ideal Life Time | >20000Hours |
| IP Level | IP68 |

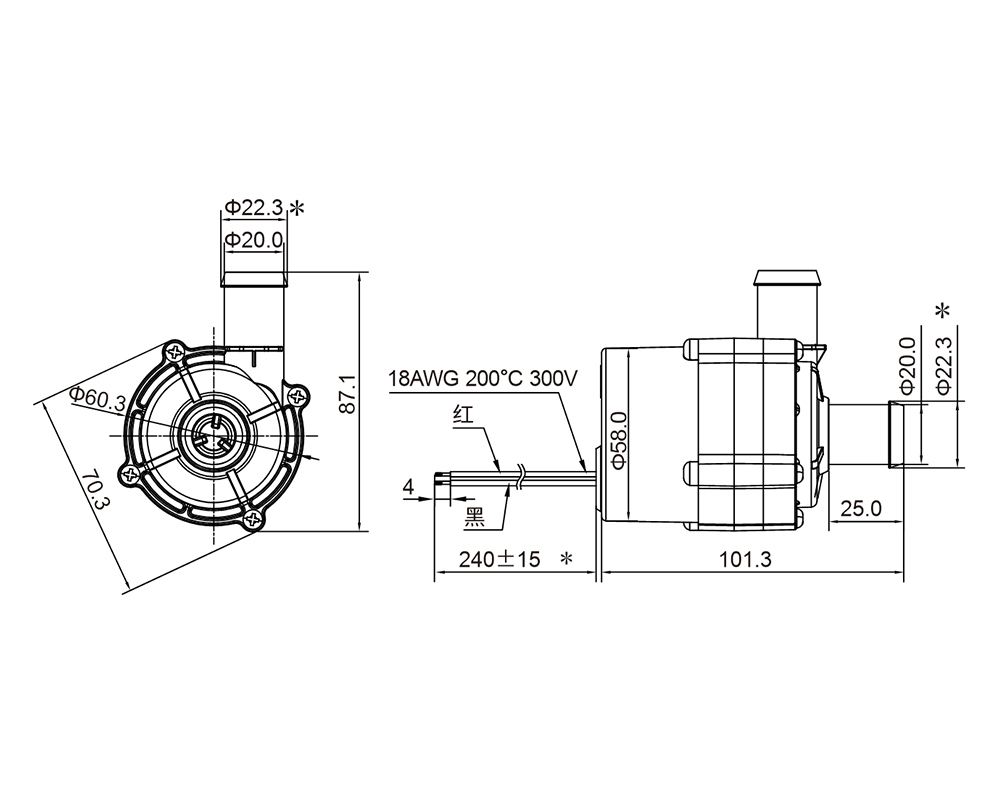

| OD(inlet / outlet) | 22.3mm / 22.3mm OEM Customization Available |
| Material | Head / Body / Pump chamber / Impeller: Japanese PPE O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Intermittent |
| Power Supply | DC power supply, battery powered |
| Protection Functions | Over-Voltage Protection; Over-Current Protection; Blocked-Protection; Dry-running Protection |
| Remarks | Can't dry-running, not self-priming |
TL-C04 High Pressure Water Pump Applications: Smart Toilet, Intelligent Toilet, Smart Bathtub, Beauty Apparatus, Medical Equipment, Semiconductor Cooling, LED Cooling, Other Boosters, Circulation And Cooling

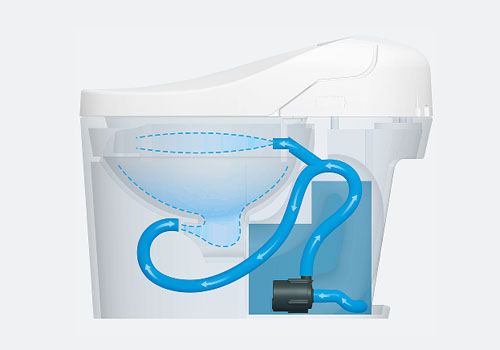

Smart Toilet

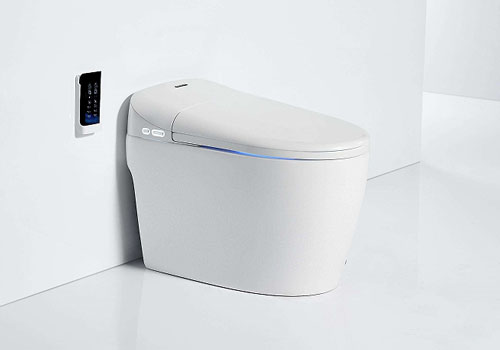

Intelligent Toilet
Function:
PWM, 5V speed control, FG (RPM) signal wire, S Submersible, liquid≤50°C
