TL-C06 Micro DC Circulation Pump

Mainly used in

"Zero cold water" Water Heater
Electric Instant Water Heater | Gas Boiler
Gas Water Heater | Heating System
HVAC System | Hot Water Circulation

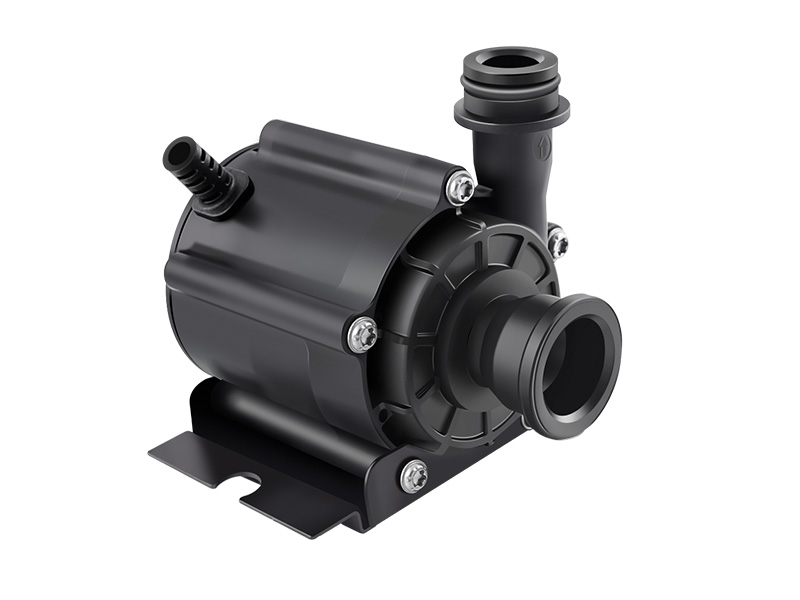

TL-C06 Micro DC Circulation Pump

Description

Large flow rate,More Stable Flow Rate

• High efficiency motor and rotor design, 30% higher efficiency than competitors’ with similar size



No electronic failure

• The electronic components are all international first-line brands, which can effectively prevent electronic failure
• The design of the electronic scheme is sufficient, and the thickerdouble-sided PCB board is used
① better heat dissipation, can work at high temperature for long time
② lower temperature rise, higher reliability
• Full set of electrostatic protection
• Professional electronic engineer with rich design experience in the automotive industry
• Professional evaluation means (high temperature life test + temperature tester + environmental test box)



No crack or leak in the pump chamber

• The stator and rotor of magnetic water pump are completely isolated and never leakage.

• Materials imported from Japan, no deform or leak under high temperature and high pressure environment for a long time. Test higher than industry standards, the pressure is above 20bar



Quiet

• One-piece injection molded magnetic silent rotor, one-time molding, ultra-quiet, good noise batch consistency
① High mold precision
② Long lifespan, low noise and stable
③ Same batch of products has good noise consistency

Specifications

Model Max Flow
(L/Min)
Max Head
(M)
Rated Voltage
(VDC)
Rated Current
(A)
Rated Power
(W)
TL-C06-A12-2410 24 10 12 4 50
TL-C06-A24-2611 26 11 24 2 50

OEM Customization Available



Technical data

Motor Type Brushless DC Motor
Foog Grade(Y/N) Y
Ambient Temperature -40-40°C
Liquid Temperature -40°C~75°C (continuous ), 100°C (interupt)
Media Water, Coolant
Working Voltage Range 12V: 6~18V
24V: 12~28V
Maximum System Pressure: 1.8MPa
Noise 42dB(A)
Ideal Life Time >20000 Hours
IP Level IP67
OD(inlet / outlet) 20mm / 20mm
OEM Customization Available
Material Head / Body / Pump chamber / Impeller: Japanese PPE
O-Ring: EPDM
Shaft: Precision Ceramics
Bearing Sleeve: Graphite
Working Mode Continuous operation under 75°C liquid temperature, 100°C intermittent operation
Power Supply DC power supply, battery powered
Protection Functions Over-Voltage Protection; Low-voltage Protection; Blocked Protection; Constant Power Output; Dry-running Protection(Customized)
Remarks Can't dry-running, not self-priming

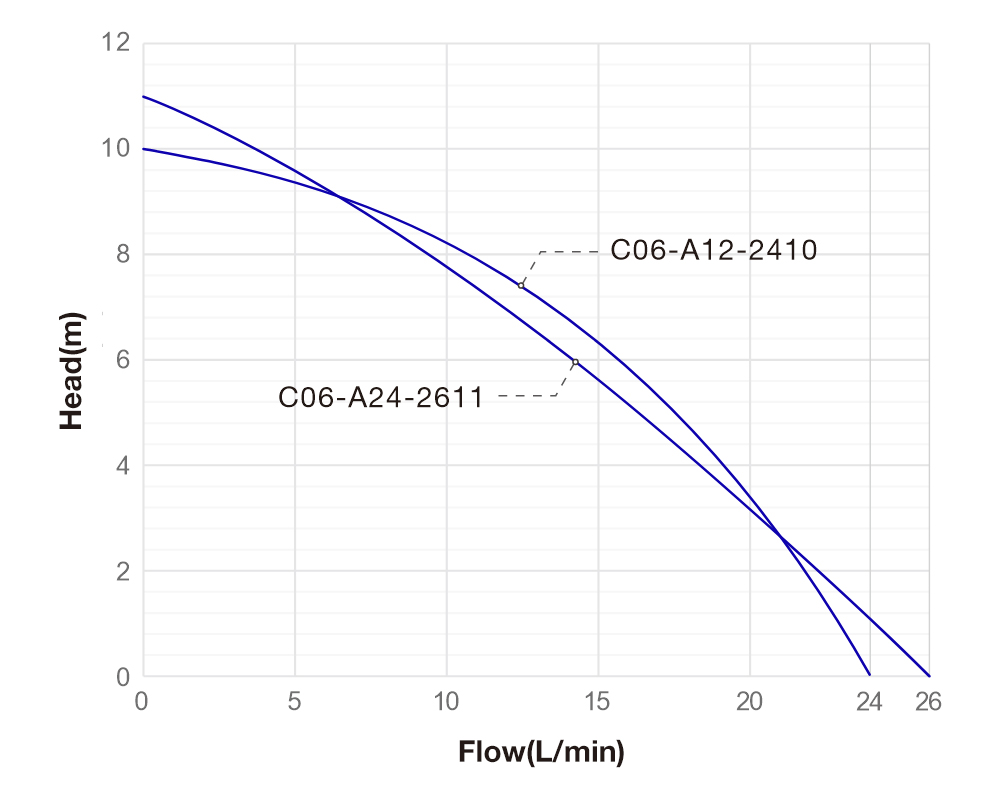

Performance Curve

Performance Curve

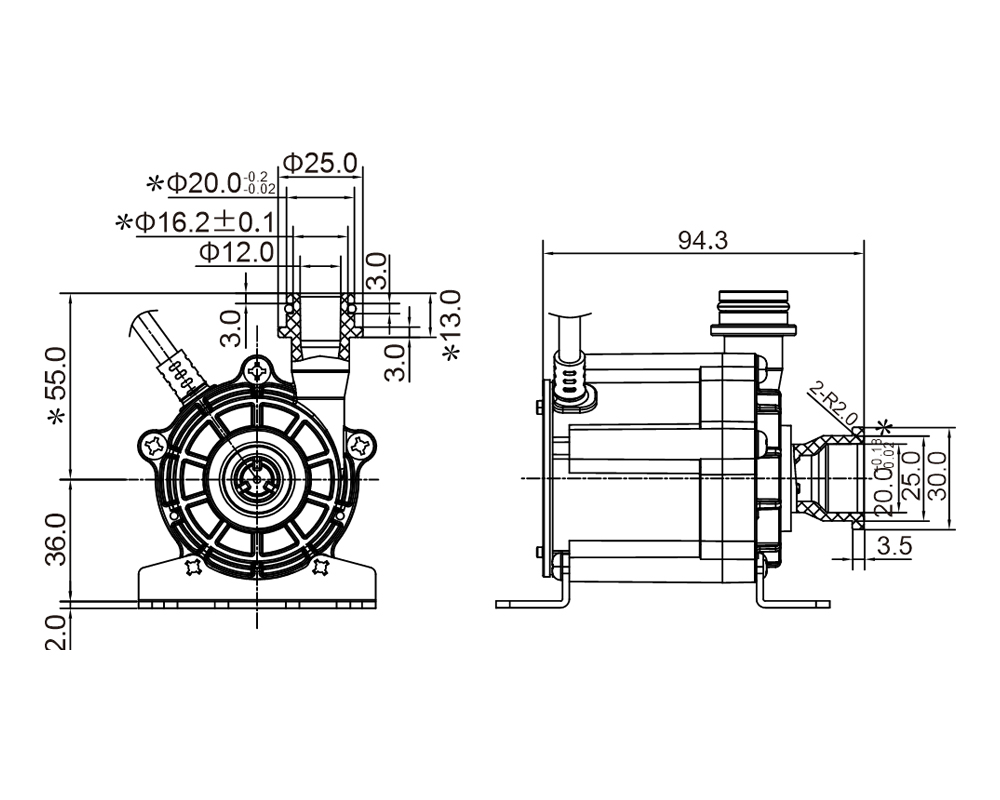

Dimension(mm)

Dimension(mm)

Application

TL-C06 DC Circulation Pump Applications: "Zero cold water" Water Heater, Electric Instant Water Heater, Gas Boiler, Heating System, HVAC System, Medical, Liquid Transfer, Other Cooling Circulation system

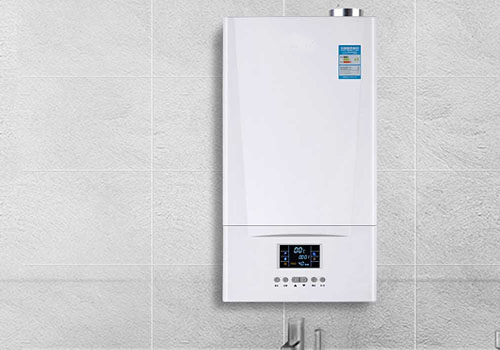

  • Water Heater

    Water Heater

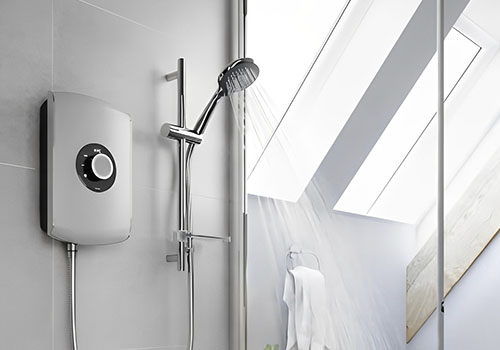

  • Electric Water Heater

    Electric Water Heater

  • Medical Devices

    Medical Devices

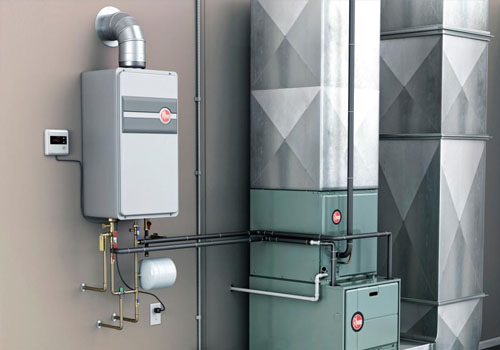

  • HVAC System

    HVAC System

Customization

Function:

PWM, 0~5V speed control, FG(RPM) signal wire



Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
