TM40A-F Mini Diaphragm Vacuum Pump
Mainly used in
Industrial Pressure & Vacuum Application
Medical Device｜Medical Diagnostic Equipment
Air Quality Sampling Monitors | Medical Atomizer
Gas or Odor Leak Detectors | Cleaning Industry
Laboratory Technology | Analytical Engineering
Description
Highest Performance/Size Ratio
• An Ultra-compact design with small size and light weight, saving installation space
Performs Quieter
• Optimized head, chamber, and flow path reduce noise without compromising performance
Lasts Reliably Longer
• Using the advanced diaphragm elastomer and superior BLDC motor design sets the highest benchmark for service-free operation that exceeds 15,000 hours
High level of gas tightness
• Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Little vibration
• Because of leading edge technologies, top quality bearing, superior dc motor
Uncontaminated flow
• No contamination of the media due to oil-free operation
Specifications
| Pressure Pump (Item Number) |
Vacuum Pump (Item Number) |
Rated Voltage (VDC) |
No-load Current (A) |
Max Pressure (Kpa) |
Max Vacuum (Kpa) |
Max Flow (L/min) |
| TM40A-F12-P25010 (outside controller) |
TM40A-F12-V8010 (outside controller) |
12 | 0.6 | 250 | 80 | 10 |
Technical data
| Motor | BLDC motor |
| Structure | Diaphragm Pump |
| Media | Most Gases |
| Material | Head Nylon, Membrane EPDM, Valve EPDM |
| Lifetime | 15000 hours |
| Working Mode | Interrupt |
| Work Temperature Rise | <70℃ |
| Customized Support | 5V,PWM, FG, Material: membrane / valve / pump head |

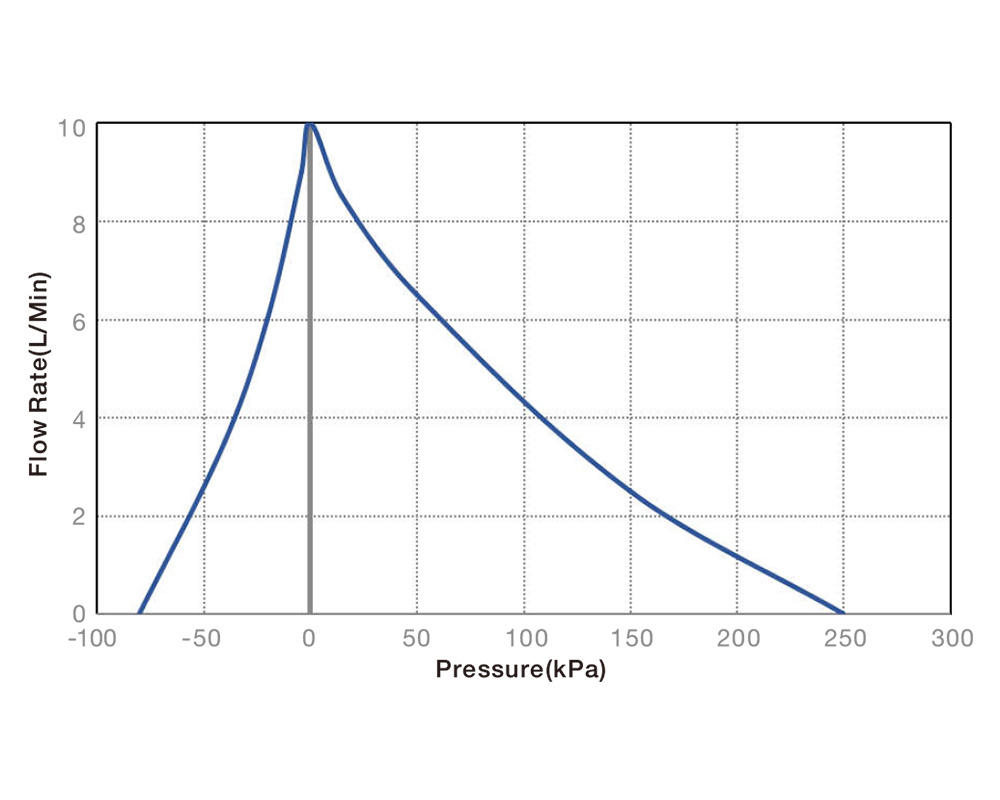

Performance Curve

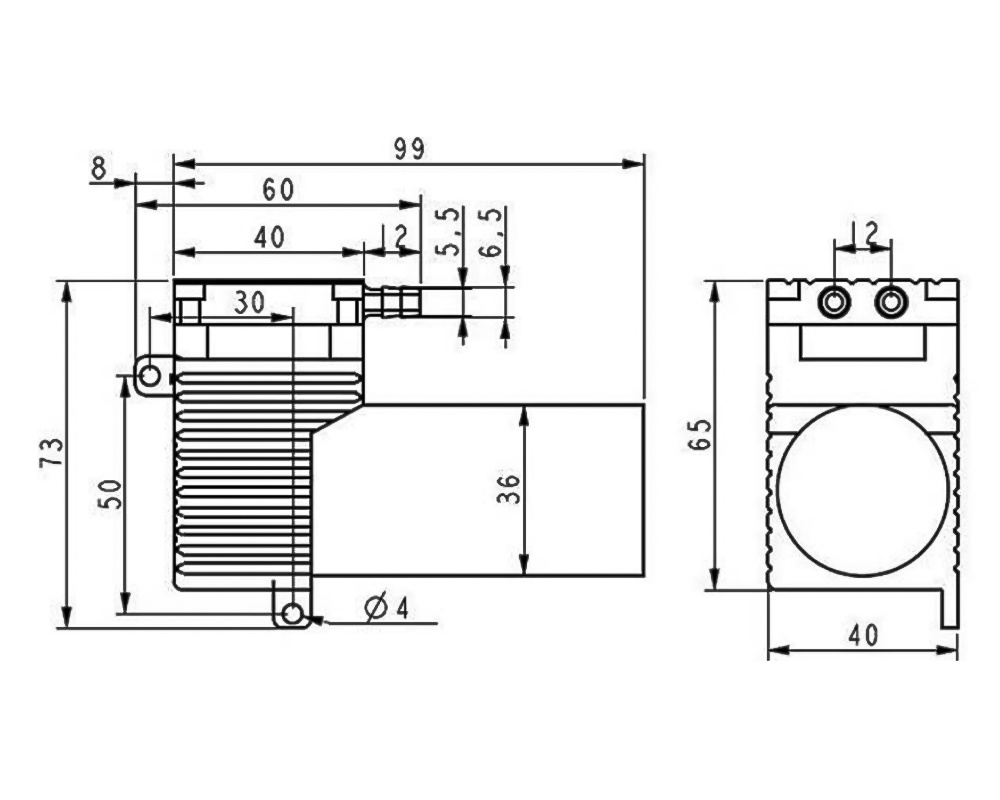

Dimension(mm)
Application
TM40 Series High Pressure Micro Diaphragm Gas Pump Applications: Industrial Pressure & Vacuum Application, Medical Device & Beauty, Medical Diagnostic Equipment, Air Quality Sampling Monitors, Medical Atomizer, Gas or Odor Leak Detectors, Cleaning Industry, Laboratory Technology, Analytical Engineering
-
Gas Detectors
-
Nasal Aspirator
-
Medical Device
-
Medical Beauty
Customization
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
