TMD40A-F Micro Diaphragm Vacuum Pump

Mainly used in

Industrial Pressure & Vacuum Application
Medical Device|Medical Diagnostic Equipment
Air Quality Sampling Monitors | Medical Atomizer
Gas or Odor Leak Detectors | Cleaning Industry
Laboratory Technology | Analytical Engineering

TMD40A-F Micro Diaphragm Vacuum Pump

Description

Highest Performance/Size Ratio

• An Ultra-compact design with small size and light weight, saving installation space

Performs Quieter

• Optimized head, chamber, and flow path reduce noise without compromising performance

Lasts Reliably Longer

• Using the advanced diaphragm elastomer and superior BLDC motor design sets the highest benchmark for service-free operation that exceeds 15,000 hours

High level of gas tightness

• Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

Little vibration

• Because of leading edge technologies, top quality bearing, superior dc motor

Uncontaminated flow

• No contamination of the media due to oil-free operation

Specifications

Pressure Pump
(Item Number)
Vacuum Pump
(Item Number)
Rated Voltage
(VDC)
No-load Current
(A)
Max Pressure
(Kpa)
Max Vacuum
(Kpa)
Max Flow
(L/min)
TMD40A-F12-P22017 TMD40A-F12-V7517 12 1.8 220 / 17
TMD40A-F12-V7517 12 1.8 / 75 17
TMD40A-F12-V9512 12 1.8 / 95 12



Technical data

Motor BLDC motor
Structure Diaphragm Pump
Media Most Gases
Material Head Nylon, Membrane EPDM, Valve EPDM
Lifetime 15000 hours
Working Mode Interrupt
Work Temperature Rise <70℃
Customized Support 5V,PWM, FG, Material: membrane / valve / pump head

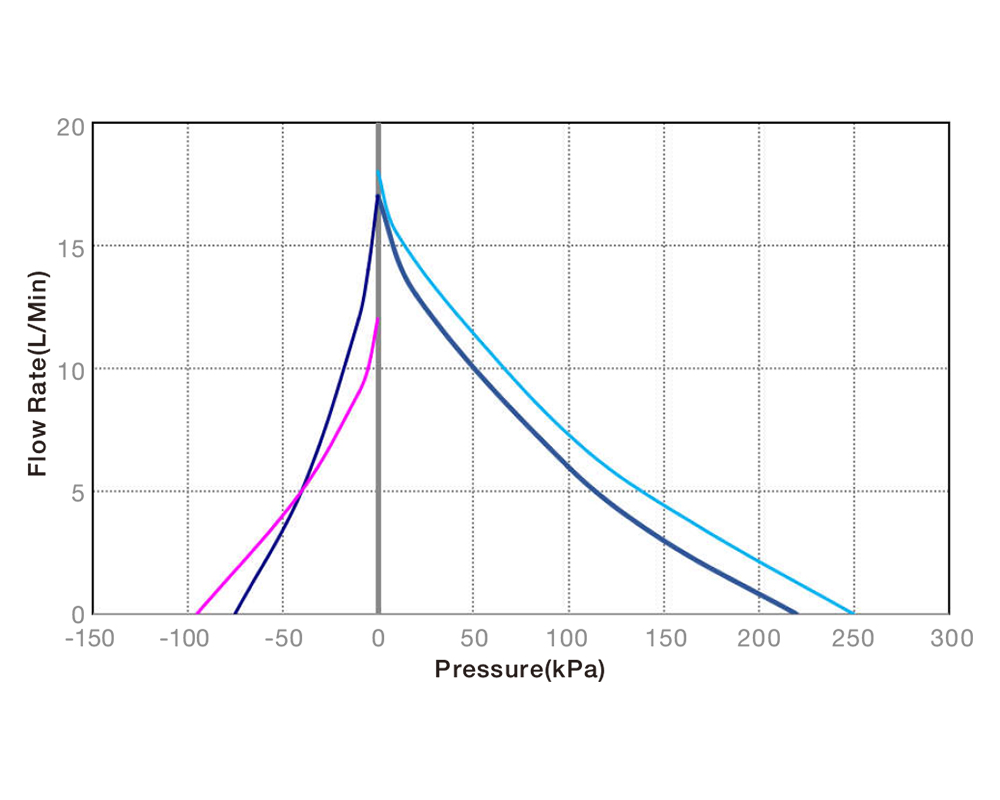

Performance Curve

Performance Curve

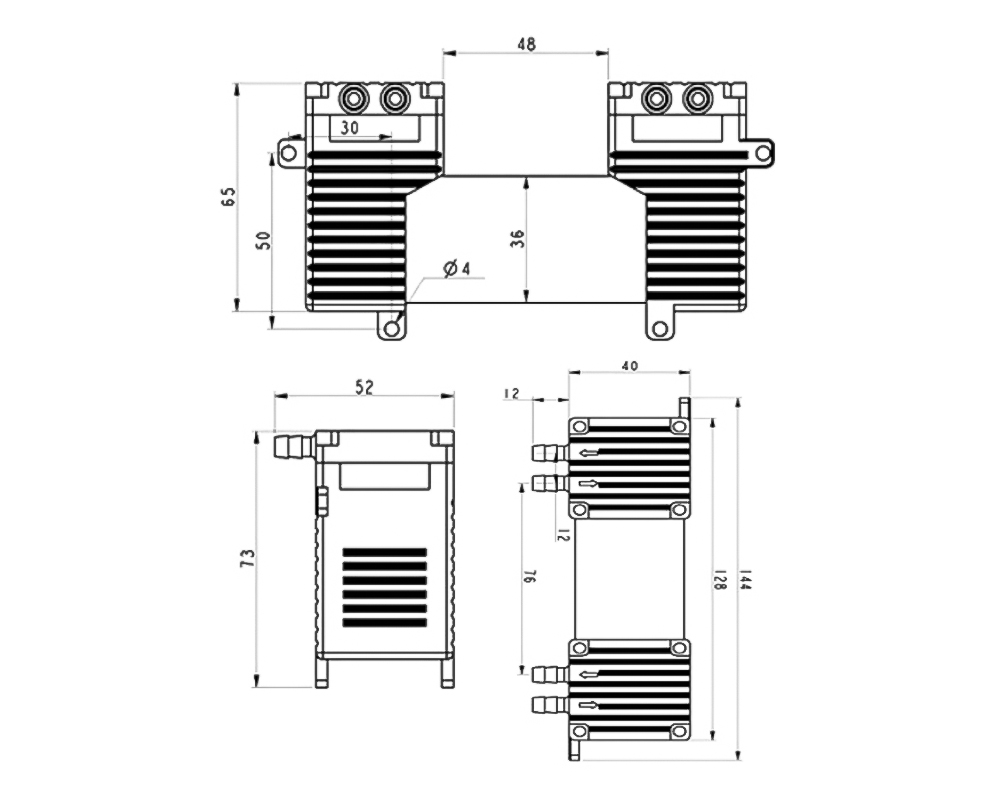

Dimension(mm)

Dimension(mm)

Application

TMD40 Series High Pressure Micro Diaphragm Gas Pump Applications: Industrial Pressure & Vacuum Application, Medical Device & Beauty, Medical Diagnostic Equipment, Air Quality Sampling Monitors, Medical Atomizer, Gas or Odor Leak Detectors, Cleaning Industry, Laboratory Technology, Analytical Engineering

  • Gas Detectors

    Gas Detectors

  • Nasal Aspirator

    Nasal Aspirator

  • Medical Device

    Medical Device

  • Medical Beauty

    Medical Beauty
