TS5-A Home Beer Brewing Pump

Mainly used in

Home Beer Brewing | Hot Water Circulation
Beverage Machine | Liquid Transfer

TS5-A Home Beer Brewing Pump

Description

Features:

Food grade, FDA certified, lead-free
All stainless steel pump body, resistant to high temperatures of 110°C
Intelligent speed adjustment
Long life, low noise

Specifications

Model Max Flow
(L/Min)
Max Head
(M)
Rated Voltage
(VDC)
Rated Current
(A)
Rated Power
(W)
TS5-A12-1403
14.3 3 12 1.08 13
TS5-A24-1403
14.3 3 24 0.5 14.4

OEM Customization Available



Technical data

Motor Type Brushless DC Motor
Foog Grade(Y/N) Y
Ambient temperature -40~40℃
Liquid temperature -40~110℃
Media Water, Coolant
Working Voltage Range 12V: 6~18V
24V: 12~28V
Maximum System Pressure 1.8MPa
Noise ≤40dB(A)
Ideal Life Time >20000 Hours
IP level IP68
OD(inlet / outlet) NPT 1/2
OEM Customization Available
Material Head / Body / Pump chamber : Japanese PPE
O-Ring: EPDM
Shaft: Precision Ceramics
Bearing Sleeve: Graphite
Working Mode Continuous
Power Supply DC power supply, battery powered
Protection Functions Over-Voltage Protection; Dry-running Protection(Customized); Over-Current Protection; Blocked-Protection; Polarity Protection
Remarks Can't dry-running, not self-priming

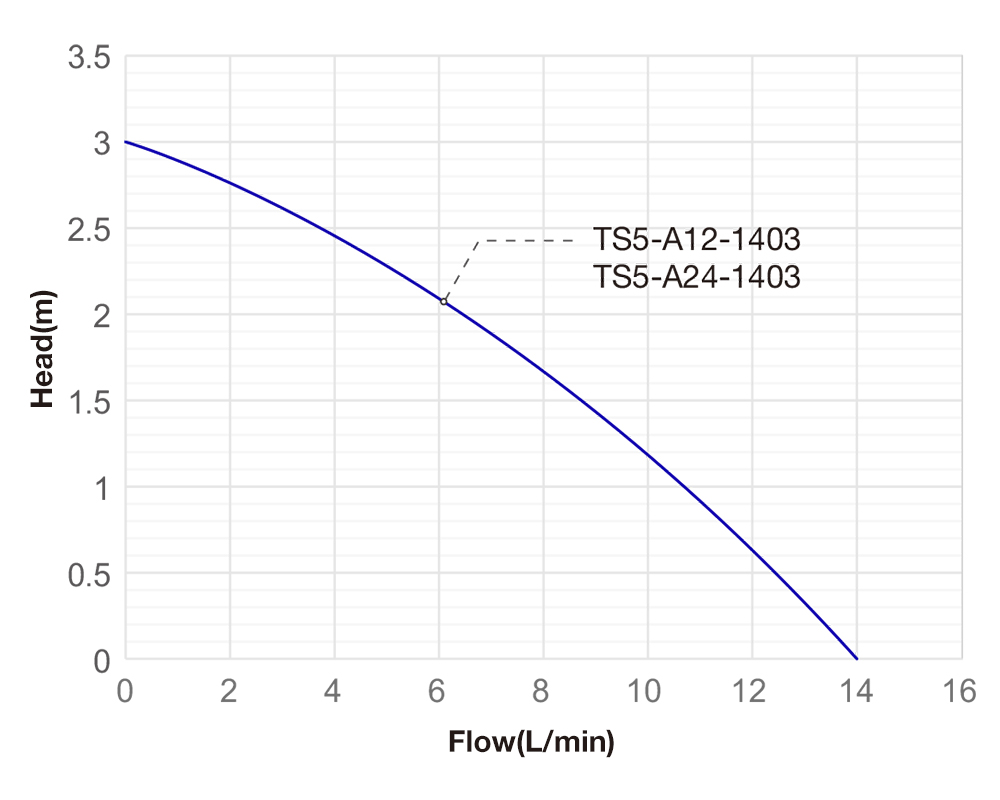

Performance Curve

Performance Curve

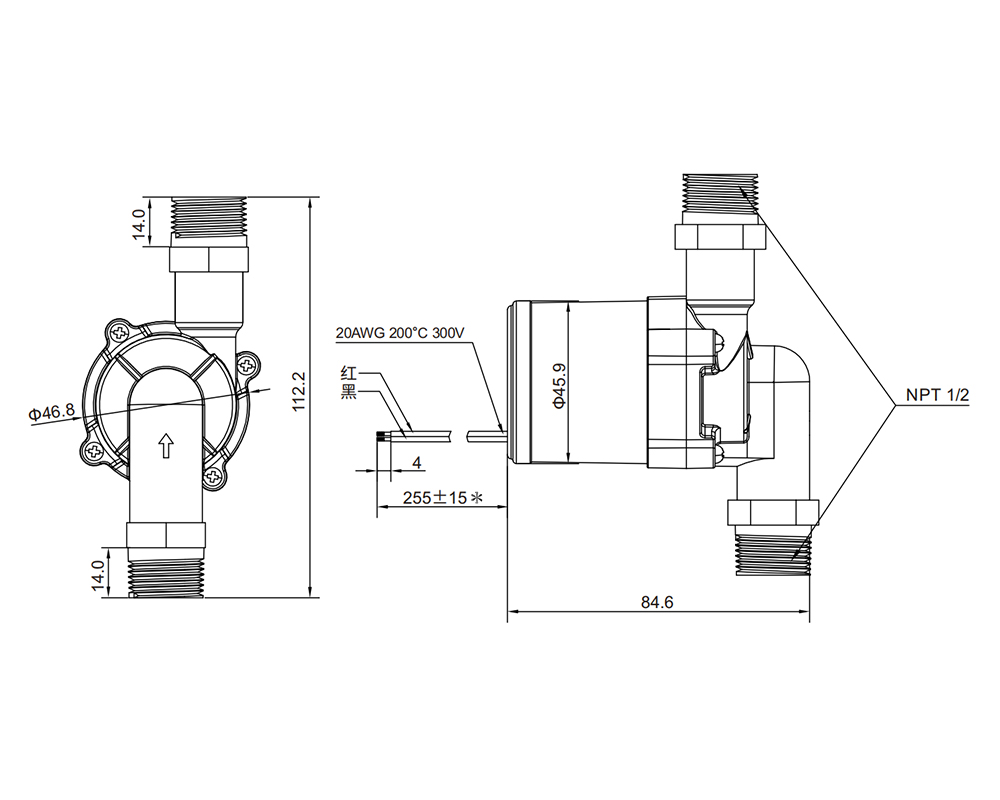

Dimension(mm)

Dimension(mm)

Application

TS5  DC Circulation Pump Applications: Home Beer Brewing,Hot Water Circulation,Beverage Machine,Liquid Transfer

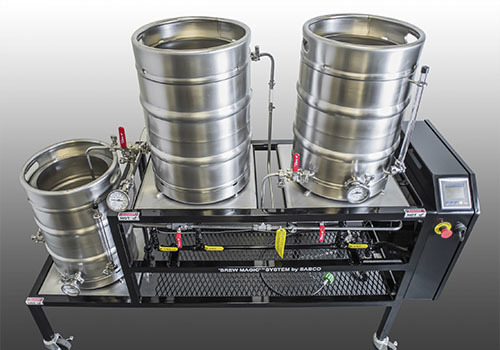

  • Home Beer Brewing

    Home Beer Brewing

  • Hot Water Circulation

    Hot Water Circulation

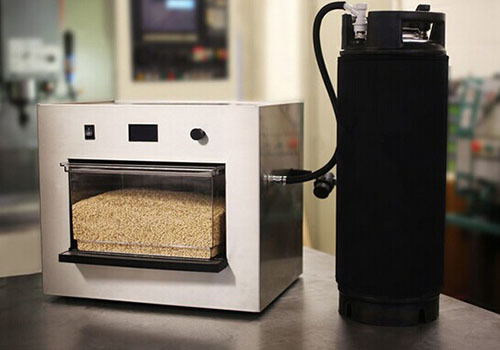

  • Beverage Machine

    Beverage Machine

Customization

Function:

PWM, 0~5V speed control, FG(RPM) signal wire, S submersible



Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
