Solar Water Heating System | Hot Water Circulation
Radiant Floor Heating | Heat Transfer Application
Features:
• DC brushless motor with energy efficiency technology by micro processor
• Soft start at very low in-rush current(The lowest starting power 2W), good convenient working directly with PV panel
• Advanced magnetic drive technology for static-impeller, without any leakage for ever
• Brushless, Sealless, Extremely Long Life, Rated at >20,000 hours.
• Heavy duty work, can sustain continual 24 hours work
• Can Run With Hot Water (212 deg F) and at High Pressure (145 psi)
• 6-24V wide operating voltage range
• 1/2″ NPT (US Standard) Threads on both sides
• Over-voltage protection • Over-Current Protection
• Blocked-Protection • Polarity Protection • Dry-running Protection
• Low or no maintenance • Low power consumption

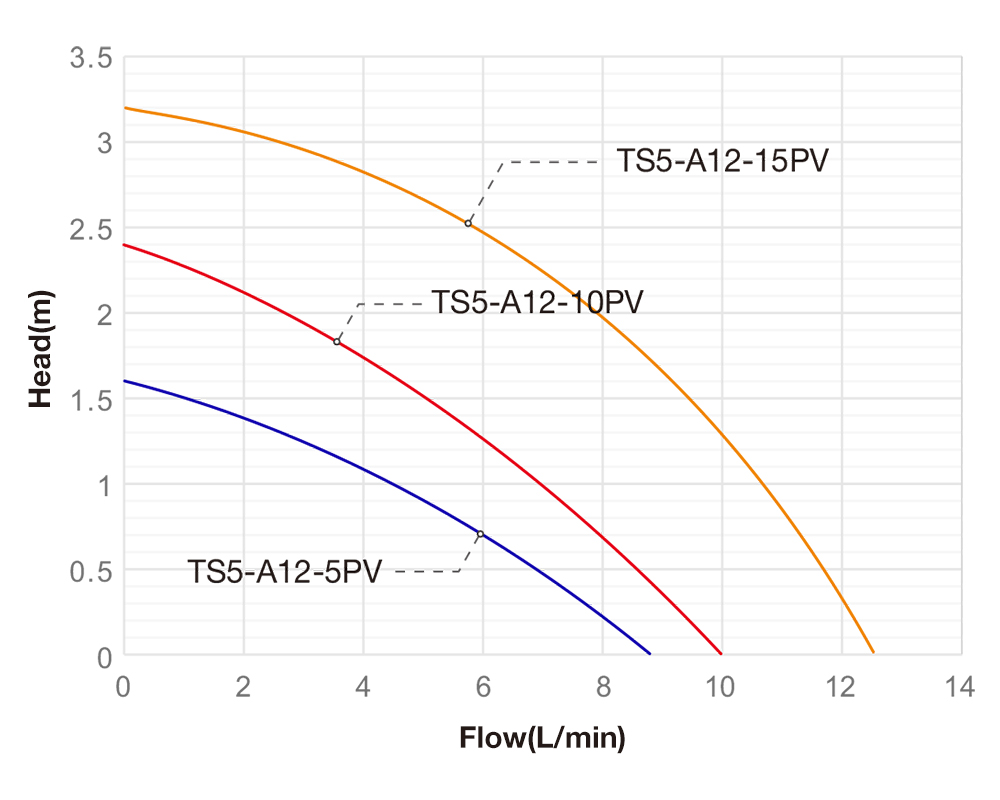

| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
|
TS5-A12-5PV
|
8.4 | 1.6 | 12 | 0.41 | 5 |
|
TS5-A12-10PV
|
10 | 2.4 | 12 | 0.83 | 10 |
|
TS5-A12-15PV
|
12.6 | 3.2 | 12 | 1.25 | 15 |
OEM Customization Available
Technical data
| Motor Type | Brushless DC Motor |
| Foog Grade(Y/N) | Y |
| Ambient Temperature | -40～40℃ |
| Liquid Temperature | -40~110℃ |
| Media | Water, Coolant |
| Working Voltage Range | 6~24V |
| Maximum System Pressure | 1.8MPa |
| Noise | ≤40dB(A) |
| Ideal Life Time | >20000 Hours |
| IP Level | IP68 |
| OD(inlet / outlet) | NPT 1/2 OEM Customization Available |
| Material | Head / Body / Pump chamber: Japanese PPS O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery, pv powered |
| Protection Functions | Over-Voltage Protection; Dry-running Protection; Over-Current Protection; Blocked-Protection; Polarity Protection |
| Remarks | Can't dry-running, not self-priming |
TS5 DC Circulation Pump Applications: Solar Water Heater, Hot Water Circulation System

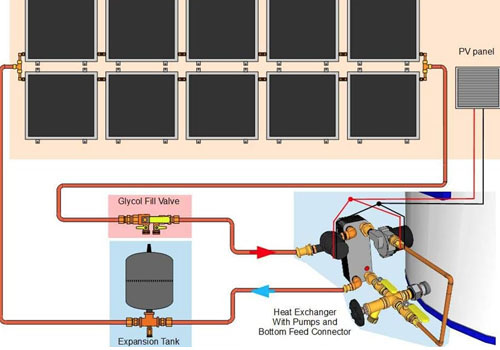

Solar Hot Water Circulation System

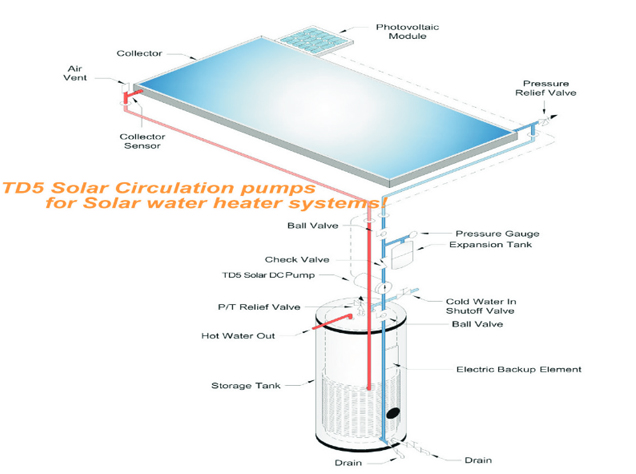

Solar Water Heater
Function:
FG(RPM) signal wire
